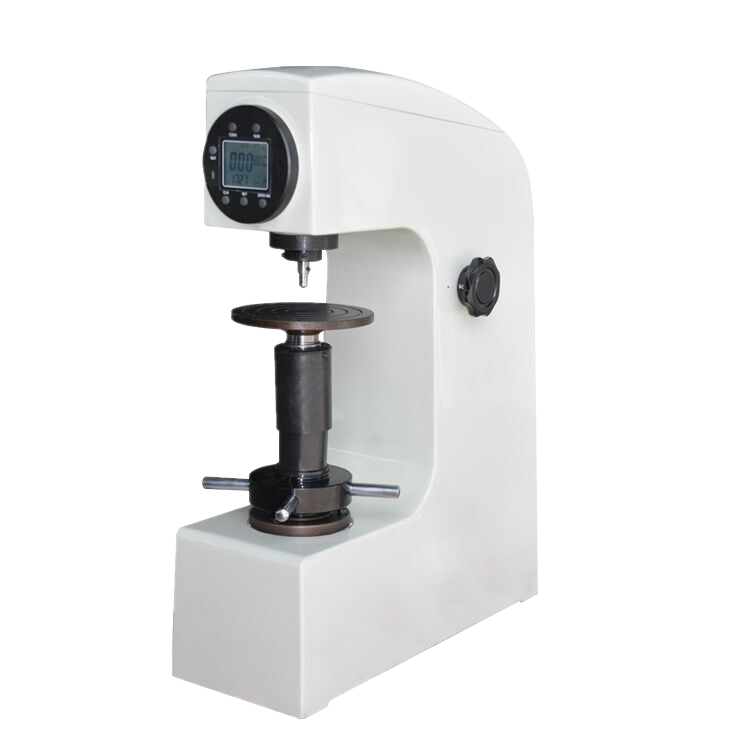

HTR-150DS Motor-driven digital Rockwell Hardness Tester
Features:
Digital display, direct reading of digital display meter, no artificial reading error, resolution up to 0.1HR, and
hardness value can be converted, mechanical manual testing process, no need for electrical control, precision oil
pressure buffer, adjustable loading speed. The accuracy complies with GB/T230.2, ISO6508-2 and American
ASTM18 standardsTechnical
Technical Parameters:
|
Measuring range |
20-88HRA, 20-100HRBW, 20-70HRC |
|
Test force |
588.4, 980.7, 1471N (60, 100, 150kgf) |
|
The maximum allowable height of the |
170m |
|
The distance from the center of |
135mm |
|
Hardness resolution |
0.5HR |
|
Dimension |
466*238*630mm |
|
Weight |
65kg |
