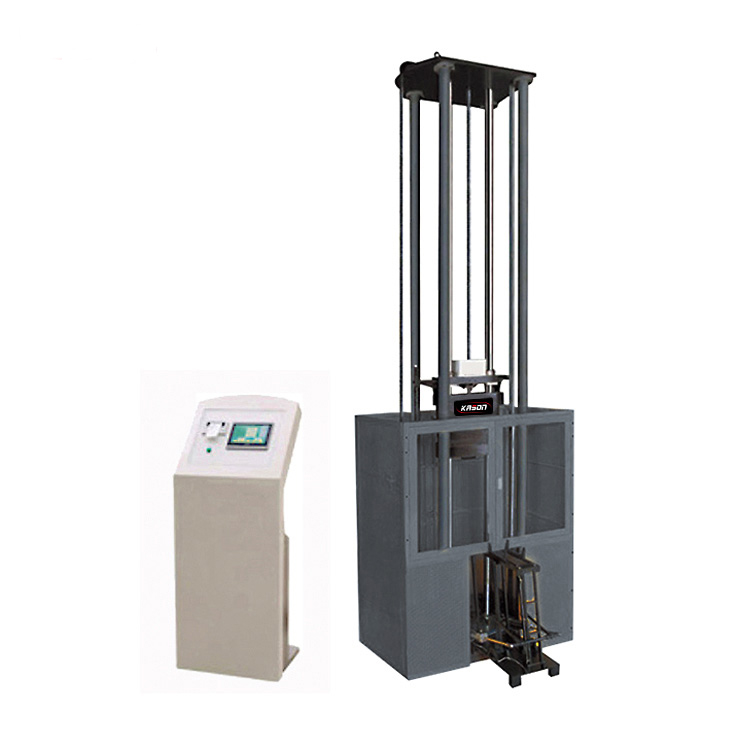

NDT-2000J 3000J 4000J 6000J Digital Display Metal Drop Hammer Impact Tester/Testing Machine
1. Application:
Drop Weight Impact Testing Machine is specially for conducting drop-weight test to determine nil-ductility transition temperature of ferritic steels.
2.Standard:
GB/T6803-86,ASTM E208-95A
3.Main Technical Parameters:
|
Model |
NDT-2000 |
NDT-3000 |
NDT-4000 |
NDT-6000 |
|
Maximum Energy(J) |
2000 |
3000 |
4000 |
6000 |
|
Minimum Energy(J) |
300 |
300 |
500 |
750 |
|
Maximum Tup Mass(kg) |
60 |
90 |
120 |
204 |
|
Tup Mass Accuracy |
±1% |
|||
|
Drop Height(mm) |
750~3400 |
750~3000 |
||
|
Velocity Of Drop(m/s) |
3.8~7.6 |
|||
|
Hammer Lifting Speed(m/min) |
3 |
|||
|
Height Resolution |
0.1 |
|||
|
Height Accuracy(mm) |
≤±10 |
|||
|
Hardness Of Tup Nose |
HRC58-62 |
|||
|
Radius Of Tup Nose(mm) |
R25.4±2.5 |
|||
|
Sample Centered Error(mm) |
±1 |
|||
|
Support Anvil Span |
P-1,P-2,P-3 |
|||
|
Specimen Dimension |
P-1:(360±1)×(90±2)×(25±2.5)P-2:(130±1)×(50±1)×(20±1)P-3:(130±1)×(50±1)×(16±0.5) |
|||
|
Power Supply |
380v±10%,50/60Hz |
|||
4.Feature:
4.1 SIMENS PLC controls and touch screen provide high reliability and versatility.
4.2 Automatic specimen feeding and automatic posting.
4.3 Frame structure is made of solid steel plate with high stability under impact.
4.4 Special design tools for support change.
4.5 Tup body is made of high strength steel plate with high impact resistance.
4.6 Use chain to lift striker with high precision in height.
4.7 Self-lock design for striker clamping.
4.8 Full-closed safety shield.
