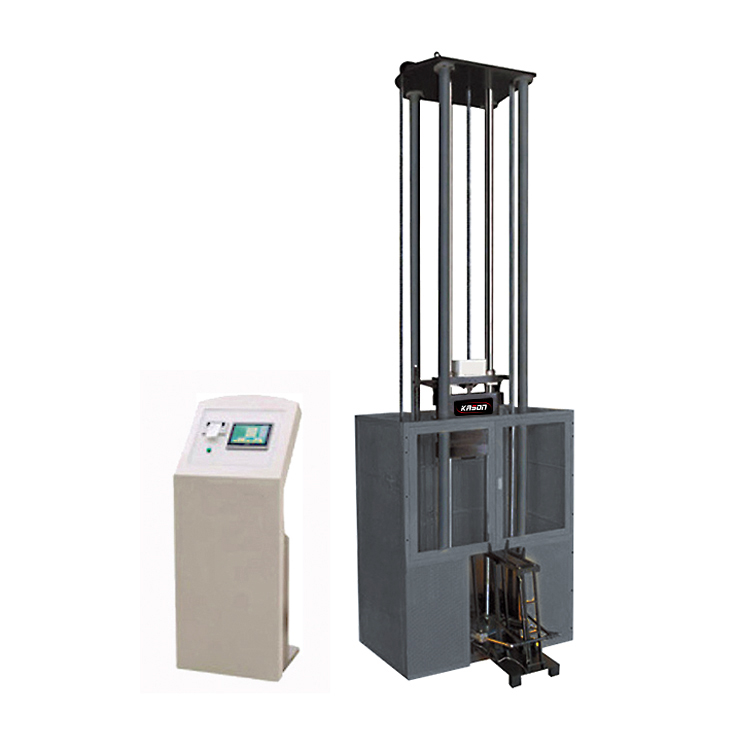

NDT Series Drop Weight Impact Testing Machine

NDT Series Drop Weight Impact Testing Machine
NDT Series Drop Weight Impact Testing Machine
NDT Series Drop Weight Impact Testing Machine


1.Application:

This type of machine is specially for conducting drop-weight test to determine nil-ductility transition temperature of ferritic steels.


2.Feature:

SIMENS PLC controls and touch screen provide high reliability and versatility.

Automatic specimen feeding and automatic posting.

Frame structure is made of solid steel plate with high stability under impact.

Special design tools for support change.

Tup body is made of high strength steel plate with high impact resistance.

Use chain to lift striker with high precision in height.

Self-lock design for striker clamping.

Full-closed safety shield


3.Specifications:

Model NDT-2000 NDT-3000 NDT-4000 NDT-6000
Maximum Energy(J) 2000 3000 4000 6000
Minimum Energy(J) 300 300 500 750
Maximum Tup Mass(kg) 60 90 120 204
Tup Mass Accuracy ±1%
Drop Height(mm) 750~3400 750~3000
Velocity Of Drop(m/s) 3.8~7.6
Hammer Lifting Speed(m/min) 3
Height Resolution 0.1
Height Accuracy(mm) ≤±10
Hardness Of Tup Nose HRC58-62
Radius Of Tup Nose(mm) R25.4±2.5
