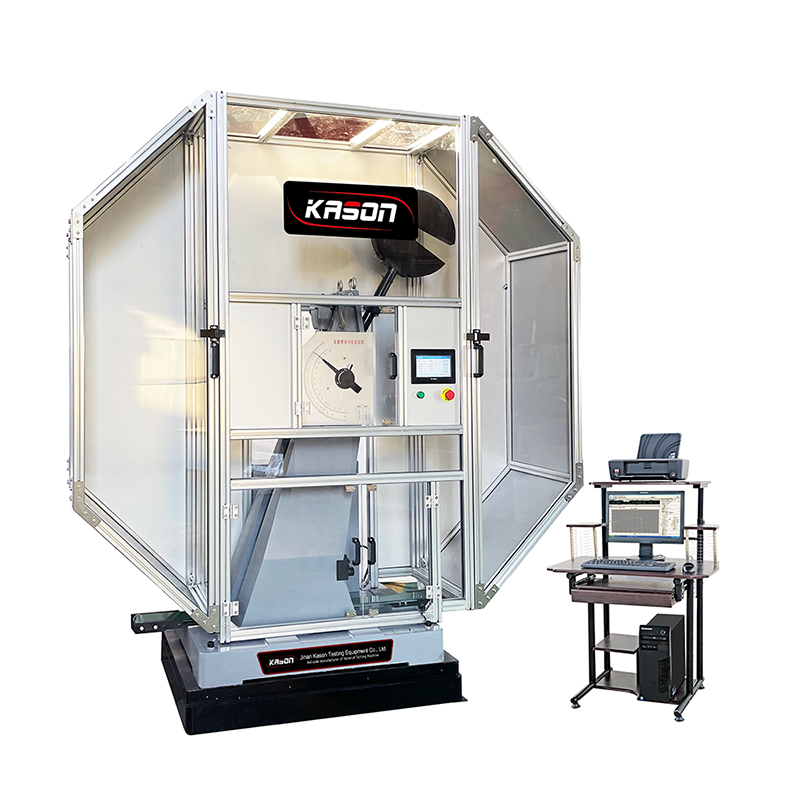

KASON PIT-CTW Computer Control and digital display Pendulum Impact Testing Machine(300J/450J/600/750J)
Application:
KASON PIT-CTW Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer and plc program control is alternative operating method.
Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specifications
|
MODEL |
PIT302CTW |
PIT452CTW |
PIT602CTW |
PIT752CTW |
|
|
Control type |
Computer and digital display control mode |
||||
|
Max. impact energy(J) |
300 |
450 |
600 |
750 |
|
|
Angle Resolution |
0.025° |
||||
|
Distance from the axis of support to the center of percussion(mm) |
750 |
||||
|
Impact speed(m/s) |
5.24 |
||||
|
Raised angle(mm) |
150°±1° |
||||
|
Standard span(mm) |
40 |
||||
|
Radius of Curvature of Supports(mm) |
1 |
||||
|
Round angle of the jaw |
R1-1.5mm |
||||
|
Angle of Taper of Supports |
11°±1° |
||||
|
Radius of Striking Edge(mm) |
2 |
||||
|
Angle of Striking Tip |
30° |
||||
|
Thickness of Striking(mm) |
16 |
||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
|
Standard specimen dimension(mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
||||
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
||||
