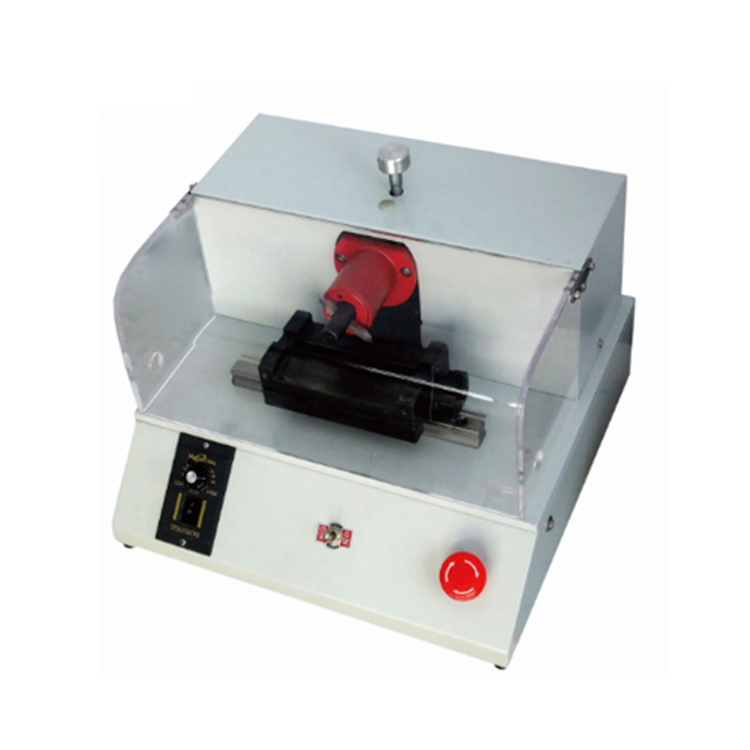

HQZ-IID Electronic Sample Notching Machine

Introduction:

The electric notch sample preparation machine is a cantilever beam, simply supported beam type impact tester for non-metallic material impact toughness test notched sample preparation equipment, this equipment can be used for scientific research institutions, universities, non-metallic material manufacturers and other units The laboratory made notched samples for use.

This machine meets the requirements of ISO179-2000, ISO180-2000 and GB/T1043-2008, GB/T1843-2008 standards. It is a simple structure, fast and accurate operation method, can mill one or more samples at a time, and has accuracy Very high sample preparation equipment.

Technical parameter:

(1) Motor speed: 300r/min

(2) Tool stroke: 10mm

(3) Tool feed rate: 0-2.5mm optional

(4) Feed speed: 20-30mm/min

(5) Feed stroke: 100mm

(6) Tool type parameters:

Type A tool 45°±1° R=0.25±0.05

Type B tool 45°±1° R＝1.0±0.05

C-type tool 45°±1° R＝0.1±0.02

Note: The above tool types can be purchased by users according to actual needs

(7) Type of sample notch: Type A, Type B, Type C
