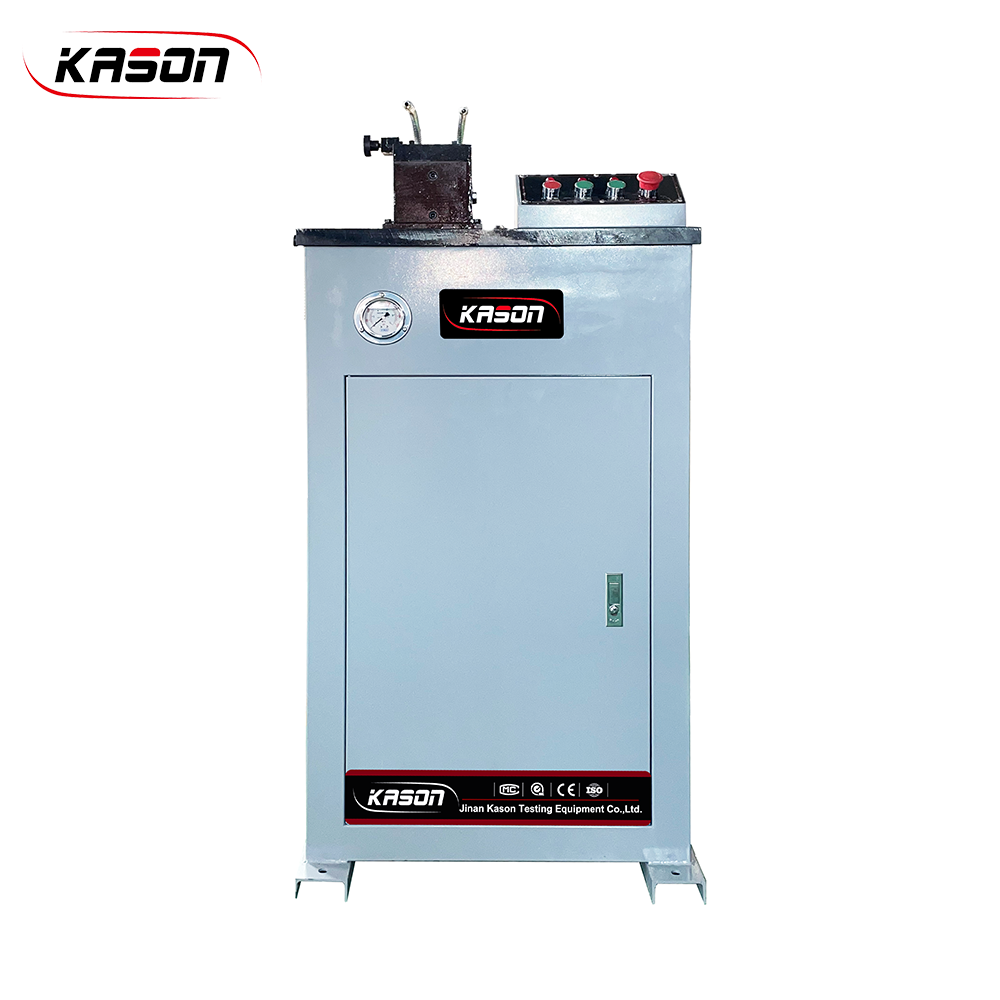

KASON CSL-B Impact Specimen Gap (double knives) Hydraulic Automatic Broaching Machine

Application

Impact specimen gap broaching machine is necessary and special equipment of metallurgy, pressure vessel,vehicles and vessels, construction machinery manufacture industries and departments of science&research.

Standards:

The series machines comply with GB2106-80 “Metal Charpy (V type) Gap Impact Test Method” and GB229-94 “Metal Charpy (U type) Gap Impact Test Method”. It can also meet American standard, European standard ASTM,E23-02a,EN10045,ISO148,ISO083, and so on.

Advantages

1.It adopts hydraulic drive, run steadily. It can ensure geometric accuracy of gap. 2.It makes use of the principle of one-time-molding.Its processing identity is very good. It can assure gap 100 percent qualified.

3.The broaching knife is made of imported W18Cr4V material. Its hardness is high and its wear-resistance is excellent. Each broaching knife can process up to 20,000 specimens.

4.It is equipped with double-pole and processes two specimen gaps simultaneously with a “V” type and a “U” type (also two “V” or two “U” type). Whether processing “V” or “U” notch, the pole do not need changing. Processing specimen gap only needs 8 seconds.

5.It is equipped with special lubrication device which has good lubricity to avoid damaging broaches. The inside of equipment has recycling box for iron chips to facilitate clearance.

Specifications
