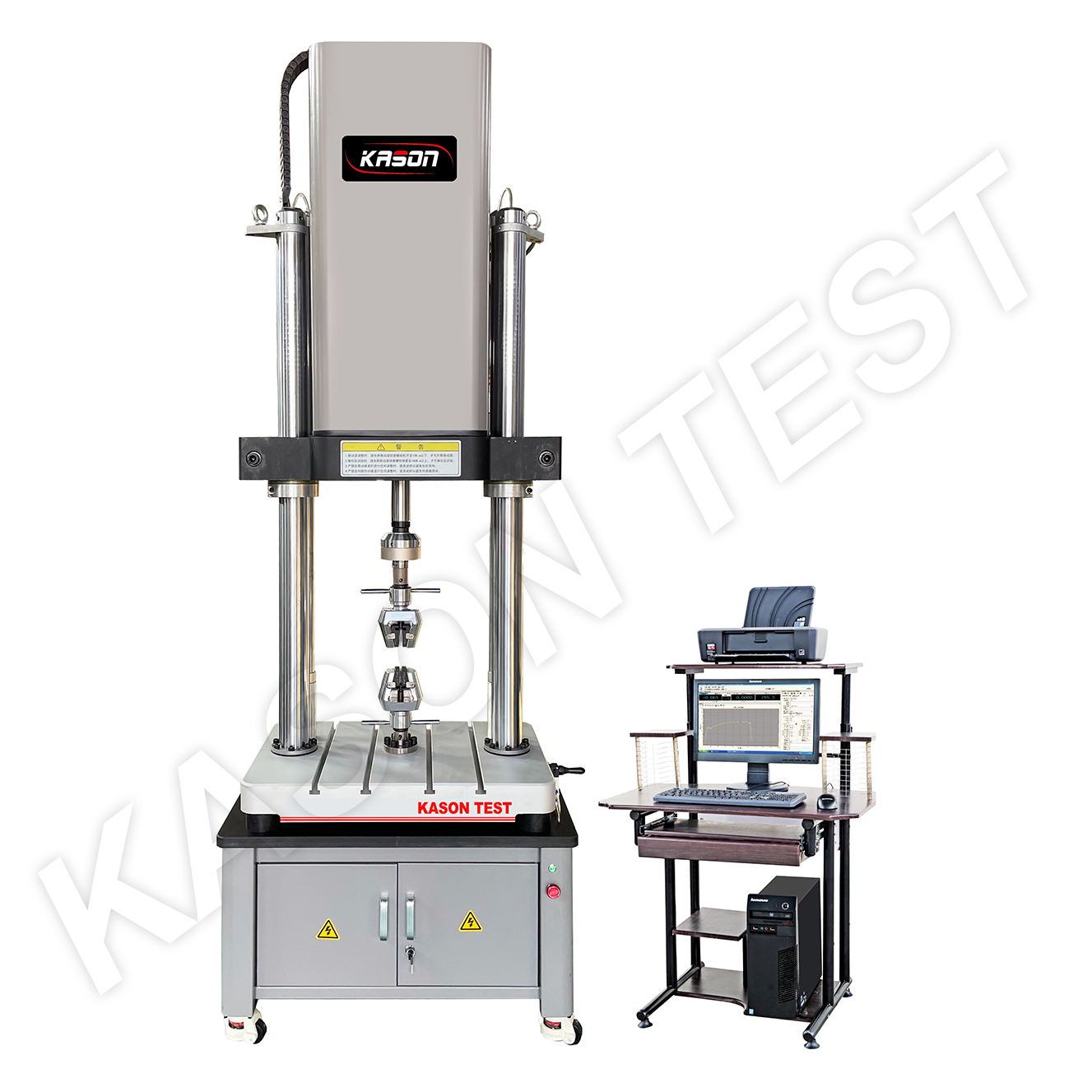

Microcomputer control electric dynamic compression tensile Fatigue Testing Machine
1. Application
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magneto strictive displacement sensor specimens force values and displacement.
2. Standards
2.1 GB / T2611-2007 《Tester General technical requirements》
2.2 GB / T16826-2008 《Hydraulic servo universal testing machine》
2.3 GB 3075 《Axial fatigue testing metal》
2.4 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
2.5 GB / T228-2010 《Metallic materials at room temperature tensile test method 》
2.1 GB / T2611-2007 《Tester General technical requirements》
2.2 GB / T16826-2008 《Hydraulic servo universal testing machine》
2.3 GB 3075 《Axial fatigue testing metal》
2.4 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
2.5 GB / T228-2010 《Metallic materials at room temperature tensile test method 》
|
MODEL |
KASON- EDT203 |
KASON- EDT503 |
KASON- EDT104 |
KASON- EDT204 |
KASON- EDT504 |
|
Maximum static force (kN) |
2 |
5 |
10 |
20 |
50 |
|
Maximum dynamic force (kN) |
±2 |
±5 |
±10 |
±20 |
±50 |
|
Load range |
2%-100%FS |
||||
|
Testing machine accuracy |
±0.5% |
||||
|
Amplitude stroke(mm) |
±50 |
||||
|
Displacement measuring range (mm) |
0～100(±50) |
||||
|
Displacement resolution(mm) |
0.001 |
||||
|
Displacement accuracy |
±0.5% |
||||
|
Sine wave test Frequency (Hz) |
Standard: 0.01～20; Optional: 0.01～50; |
||||
|
Test waveform |
Sine wave, triangle wave, square wave, etc |
||||
|
Maximum tensile space (mm) |
0～570 |
||||
|
Distance between columns (mm) |
460 |
||||
|
Machine frame sizes(mm) |
778X711X1655 |
||||
|
Power supply |
AC 380V± 10%, 50Hz |
||||
