Introduction:

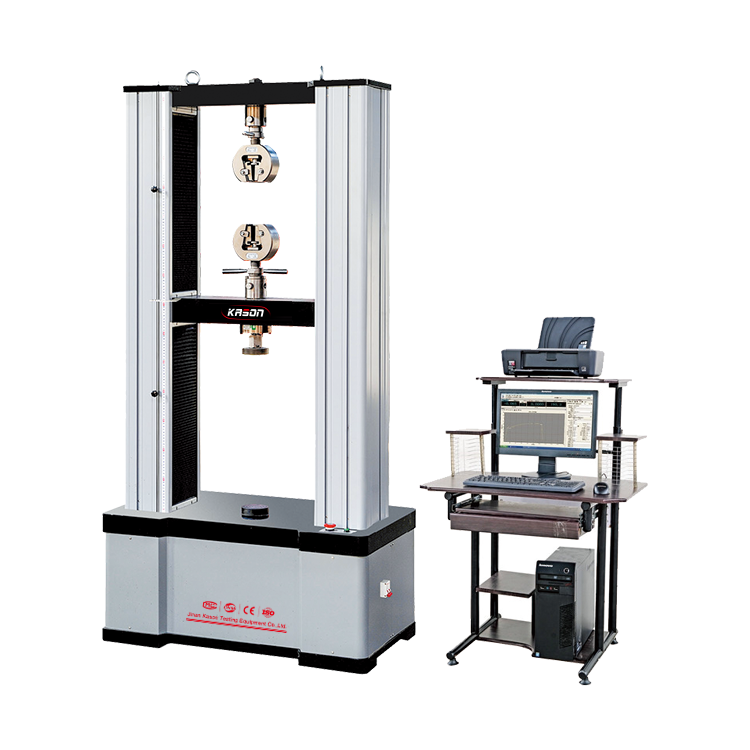

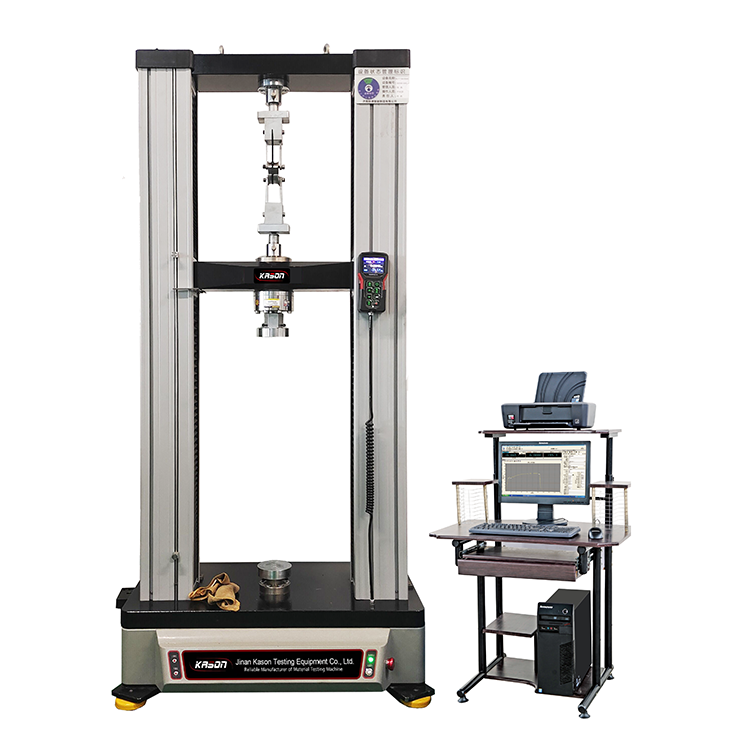

ETM series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Technology parameters:
Model | ETM 504 | ETM 105 |
Load cell | ||
Calibration standard | ISO 7500 | |
Load Capacity (kN) | 50 | 100 |
Accuracy grade | Class 0.5 | |
Testing load accuracy | ±0.5% | |
Deformation accuracy | ≤±0.5% of 0.4%~100% of rated capacity | |
Displacement Accuracy | ±0.5% of reading | |
Testing Force Range | 0.2%-100%FS | |
Force Resolution | 1/500000FS | |
Force accuracy | ±0.5% of reading | |
Controller | ||
Sampling frequency | Up to 1000 Hz | |
Closed loop control frequency | Up to 1000Hz | |
Resolution | 20 bit | |
Software | KASON TEST(Support English,Russian ,Turkish Language, etc.) | |
Main frame | ||
Speed Range (mm/min) | 0.01-1000 | 0.01-500 |
Control Accuracy | ±0.5% | ±0.5% |
Crosshead Travel(mm) | 1100mm | 1100mm |
Tensile Testing Space(mm) | 770 | 650 |
Compression Testing Space(mm) | 1000 | 1000 |
Test width (mm) | 450 | 550 |
Compression Platen (mm) | Ф100mm | Ф100mm |
Power Supply | AC220V±10%, 50Hz/60Hz |
