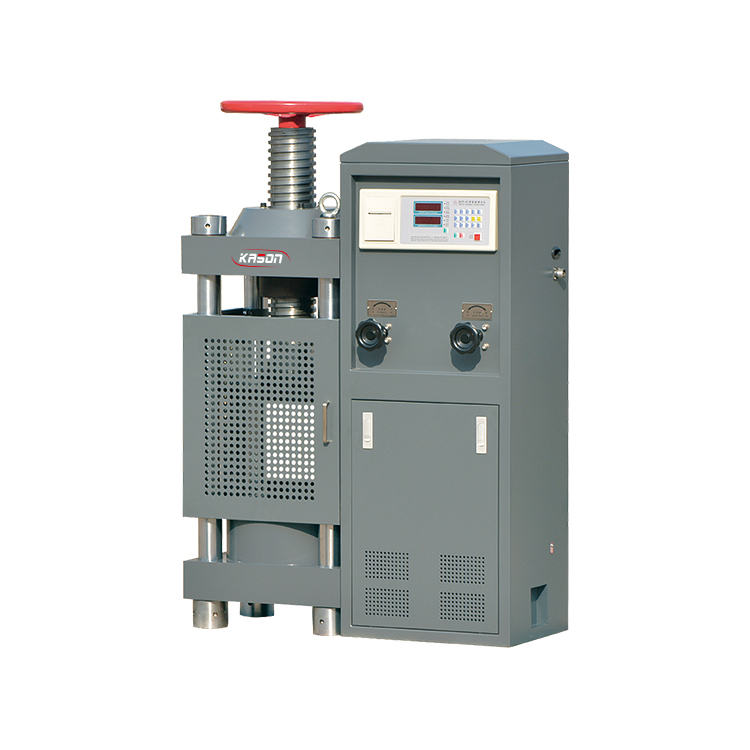

1000KN 2000KN 3000KN digital display concrete ctm machine
Application
This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Technology parameters:
| Model | HCT-106 | HCT-206 | HCT-306 |
| Max. load | 1000KN /100Ton | 2000kN/200Ton | 3000KN /300Ton |
| Machine Class | 1 class | 1 class | |
| Min. Resolution | 0.1kn | 0.1kn | |
| Testing space adjust method | Manual adjust | Manual adjust | |
| Max. Piston stroke | 50mm | 50mm | |
| Diameter of Piston | 250mm | 300mm | |
| Distance between platens | 320mm | 400mm | |
| Upper and lower platen size | 220*250mm (Can be customized) | 300*300mm (Can be customized) | |
| Display | LCD & Computer screen display | LCD& Computer screen display | |
| Power supply | 0.75KW, AC380V/50Hz/3 phase(can be customized) | ||
| Size | 880*370*1220 mm | 1000*500*1450 mm | |
| Net weight | 600kg | 1000kg | |
