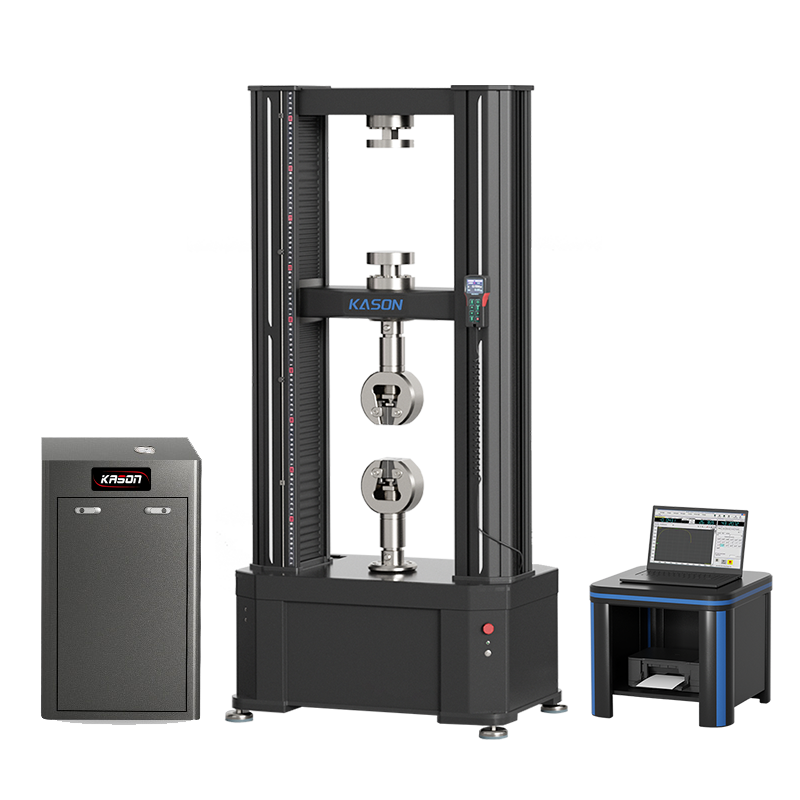

400KN Computer control electronic universal testing machine
Introduction
ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards
Load meets or exceeds the following standards:
ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221, DIN-51223, DIN-51227, DIN-51228, UNE-7-474-92,
Strain measurement meets or exceeds the following standards:
ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
|
Model |
KASON ETM 405 |
|
Measurement Parameters |
|
|
Max. Load |
400kN(40000kgf) |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
|
|
Force accuracy |
±0.5% of reading |
|
Force measurement range |
0.2%-100%FS |
|
Force resolution |
1/500000FS |
|
Displacement accuracy |
±0.50% of reading |
|
Displacement resolution |
0.04μm |
|
Deformation measuring range |
0.4%～100%FS |
|
Deformation accuracy |
≤±0.5% |
|
Control Parameters |
|
|
Adjustable range of force control rate |
0.001％～5％FS/s |
|
Control accuracy of force control rate |
When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value. |
|
Adjustable range of deformation rate range |
0.005～5%FS/s |
|
Control accuracy of deformation rate accuracy |
When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value. |
|
Crosshead speed range |
0.001～500mm/min |
|
Crosshead speed accuracy |
Within ±0.5% of set speed |
|
Mainframe parameters |
|
|
Testing space (Crosshead Travel) |
1210mm |
|
Max. Tensile Testing Space |
750mm |
|
Test width |
700mm |
|
Hydraulic automatic tension grip |
Round grips:Ø4-Ø9mm, Ø9-Ø18mm Flat grips:0-9,9-18mm |
|
Machine Dimension |
1298x868x2562mm |
|
Approx Weight |
2100kg |
|
Power supply |
2.5kW, 3phase AC220V±10%,50/60Hz |
