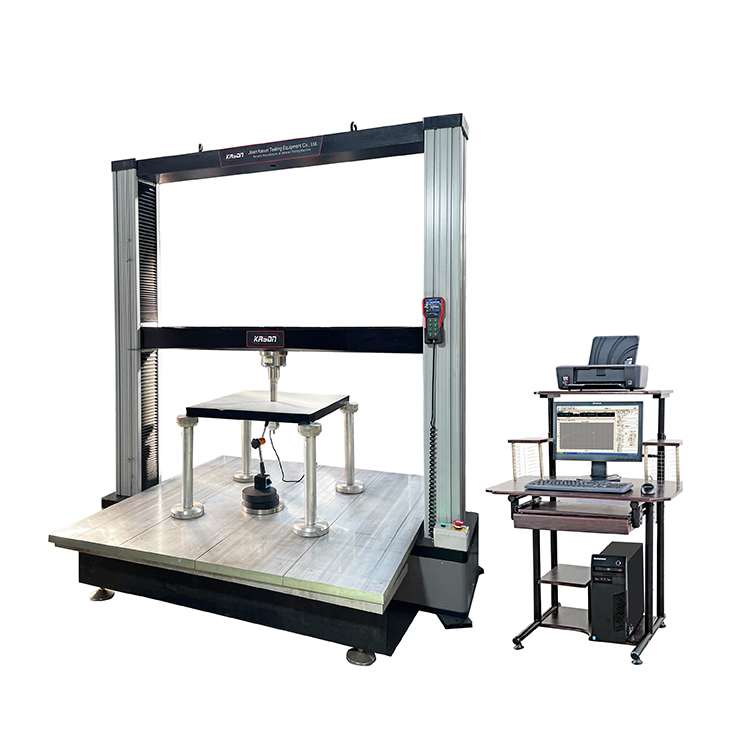

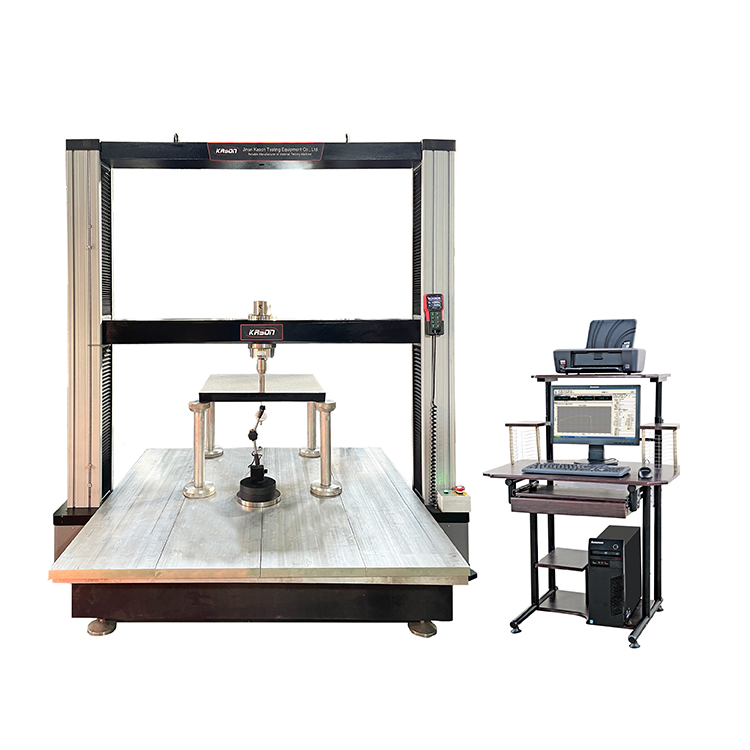

BSEN1285 ETM504 SERIES Electromechanical Universal Testing Machine For Floor Platen
Application:
The testing machine is composed of measuring system, driving system, control system, and
computer, used for compression test for the points of the floor plate.
Standard:
BSEN 1285
Specification:
| Model | ETM504 |
| Columns | Double Column |
| Load Capacity (kN) | 50 |
| Test Grade | 0.5 |
| Testing Force Accuracy | ±0.5% |
| Testing Force Range | 0.4%-100%FS |
| Force Resolution | 1/300000 |
| Displacement Accuracy | ±0.5% |
| Displacement Resolution | 0.05mm |
| Speed Range (mm/min) | 0.01-1000 |
| Control Accuracy | ±0.5% |
| Max. Compression Testing Space(mm) | 800 |
| Test width (mm) | 1200 |
| Lower compression Platen | 1190*1190mm （customized) |
| Load cell | High-precision USA load cell offers high stiffness, high stability, and high linearity |
| Position limit switch | Upper and lower lights |
| Power Supply | AC220V±10%, 50Hz/60Hz |
