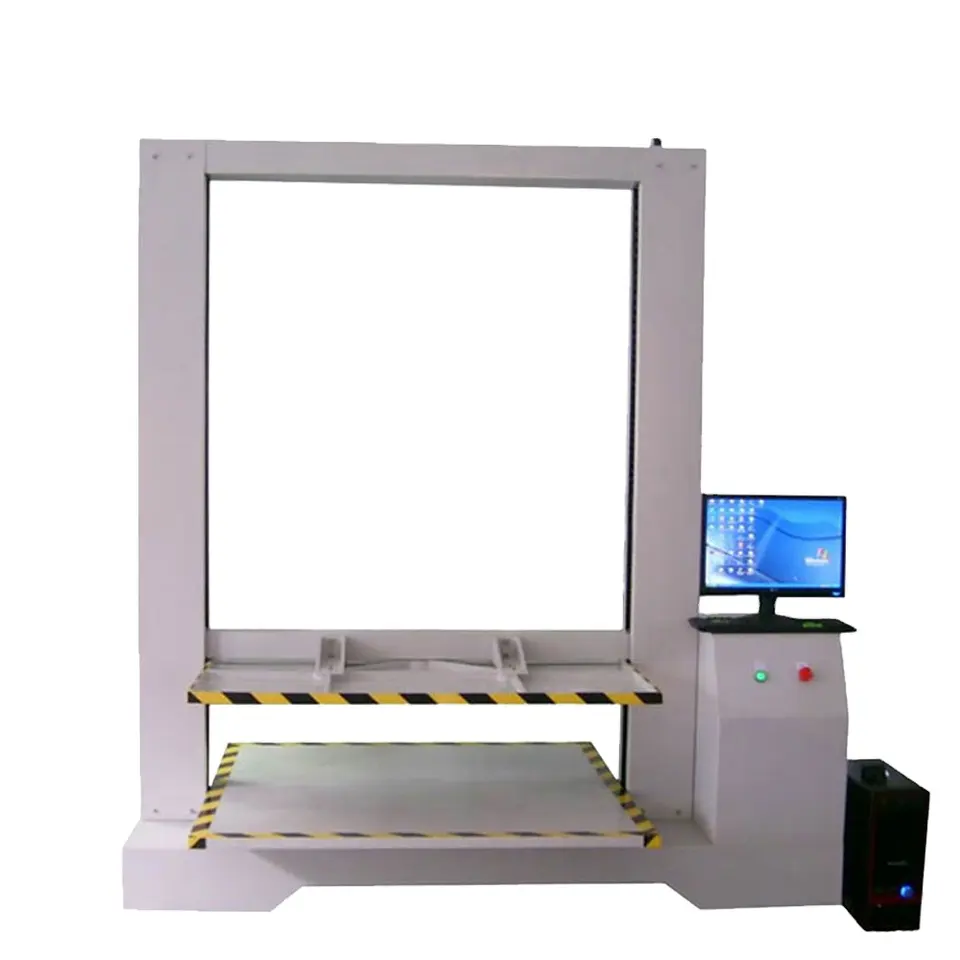

Laboratory equipment carton box compression strength testing machine corrugated box compression tester
1.Application :
Electronic Carton Box Compression Test machine is uesed for all kinds of packing boxs and containers pressure resistence,compressive strength test. Test results can be used as the important bases for
factories determining the hight of packing boxes or designing the packing box.
2.Features :
2.1Electronic Carton Box Compression Test machine can test cartons compression.
2.2Electronic Carton Box Compression Test machine is the black paint processing, beautiful shape, with precision ball screw and double guide post.
3.3Improve the operation of the stability and speed control accuracy and the precision power sensor
with my company the fine measurement and control system, which can real-time display current
value and the maximum, and through RS232 serial ports and common to commercial computer connected for data transmission, the curve of the analysis and summary report , is a factory department reliable testing instruments.
3.Specification :
|
Capacity: |
1000,2000,5000Kg |
|
Power Monitor: |
LCD display, and integrated function of computer access |
|
Resolution: |
1/50,000 |
|
Display accuracy: |
0.001kg |
|
Unit: |
N,KG,Lb switchover |
|
Input item: |
The maximum capacity (highs, lows set set), date, batch number, sectional area. Each test results can exhale check and remove |
|
Output: |
Test results can output to check or delete direct. Automatically record time. |
|
Test speed: |
5~200mm/min (adjustable by control panel) |
|
Test space: |
100×100×100cm (can be customized) |
