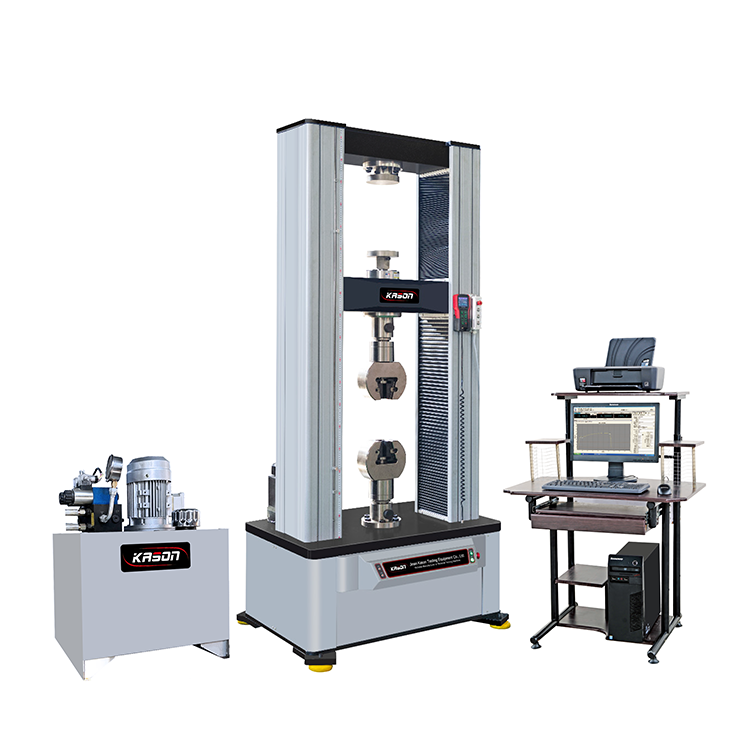

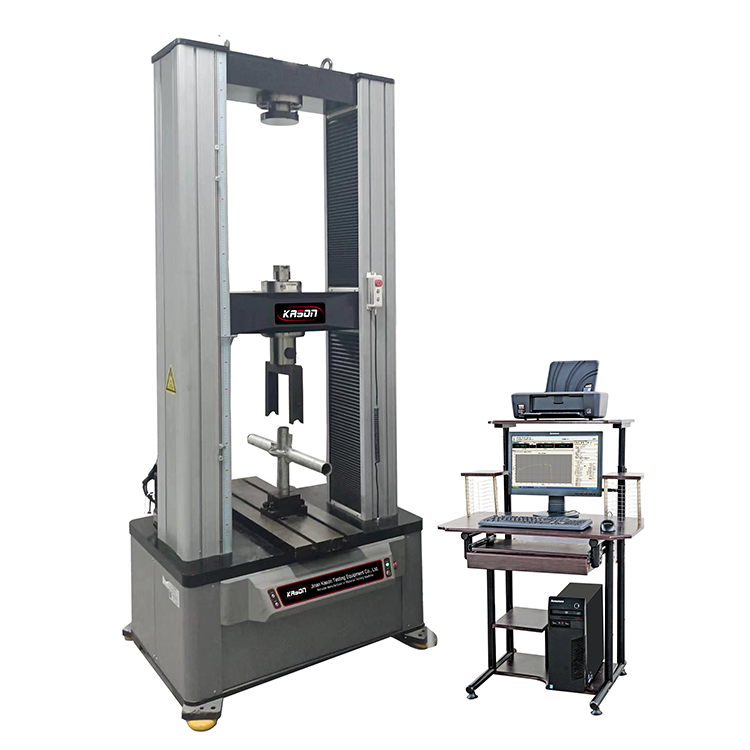

Metal/Plastic/Plywood/Polymer/PVC/Rope/Rubber/Paper/Leather/PVC/Fabric/Steel/Cable/Cement/Film/Fiber/Wire Tensile Strength Universal Testing Machine
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
StandardsASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
| Model | ETM503 | ETM104 | ETM204 | ETM304 | ETM504 | ETM105 |
| Columns | Double Column | |||||
| Load Capacity (kN) | 5 | 10 | 20 | 30 | 50 | 100 |
| Test Grade | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Testing Force Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Testing Force Range | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS | 0.4%-100%FS |
| Force Resolution | 1/300000 | 1/300000 | 1/300000 | 1/300000 | 1/300000 | 1/300000 |
| Displacement Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Displacement Resolution | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| Speed Range (mm/min) | 0.01-1000 | 0.01-1000 | 0.01-1000 | 0.01-1000 | 0.01-1000 | 500 |
| Control Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Crosshead Travel | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1100mm |
| Max. Tensile Testing Space(mm) | 670 | 670 | 670 | 770 | 770 | 650 |
| Max. Compression Testing Space(mm) | 900 | 900 | 900 | 1000 | 1000 | 1000 |
| Test width (mm) | 450 | 450 | 450 | 450 | 450 | 550 |
| Compression Platen | Ф80mm | Ф80mm | Ф80mm | Ф80mm | Ф80mm | Ф80mm |
| Load cell | High-precision USA load cell offers high stiffness, high stability, and high linearity | |||||
| Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test | ||||||
| Self-recognition (TEDS) function, Regular self-calibration | ||||||
| Position limit switch | Upper and lower lights | |||||
| Power Supply | AC220V±10%, 50Hz/60Hz | |||||
| Overall Dimensions (L*W*H: mm) | 850 x 590 x 1750 | 840 x 570 x 1850 | 950x660x2000 | |||
| Net Weight(kG) | 370 | 370 | 370 | 420 | 420 | 680 |
