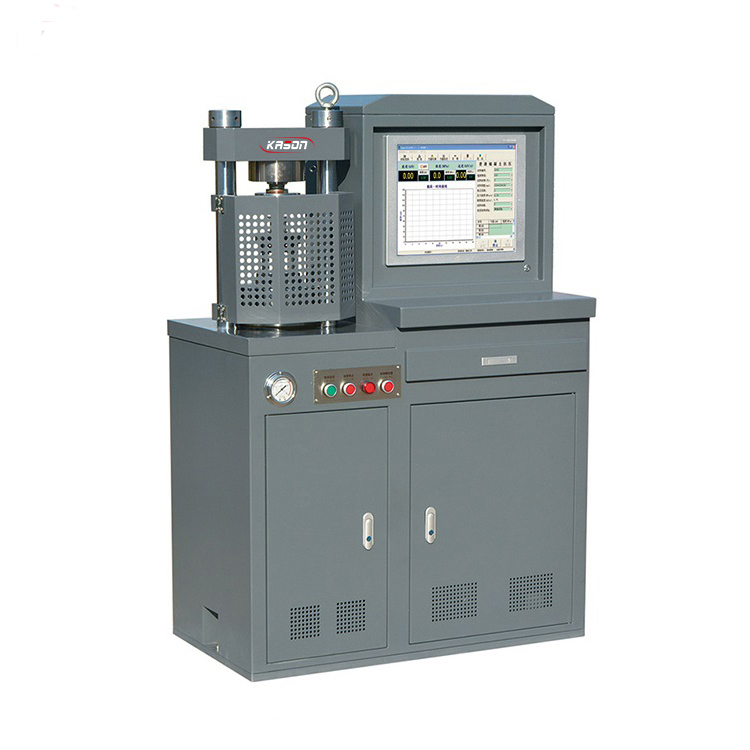

500kn/1000kn/2000kn compression tester with PC&Servo Control for building materials ceramics
Application
This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
Standards
BS EN 12930.4, ASTM C39, GB/T 50081(part 6)
Main Specifications
|
Model |
YAW-100B |
YAW-300B |
YAW-300C
|
YAW-300CH
|
|
Max compression test force(kN) |
100 |
300 |
300,10 |
30,10 Bending |
|
Type |
Compression |
Compression and Bending |
||
|
Test Accuracy |
±1% |
|||
|
Test measurement range |
2%-100%FS |
|||
|
Control way |
Computer control auto loading progress |
|||
|
Test space adjustment method |
Block adjustment test space |
|||
|
Oil cylinder piston diameter and stroke |
Φ125mm×80 |
|||
|
Maximum Piston rising speed |
60mm/min |
|||
|
Free fall velocity of the piston |
35mm/min |
|||
|
Maximum oil pressure |
25Mpa |
|||
|
Max compression space |
390mm |
180 |
||
|
Upper and lower compression plates size |
150mm×200mm |
Φ108mm /Φ60mm |
||
|
Power supply |
380V, 50HZ, 0.75KW |
|||
