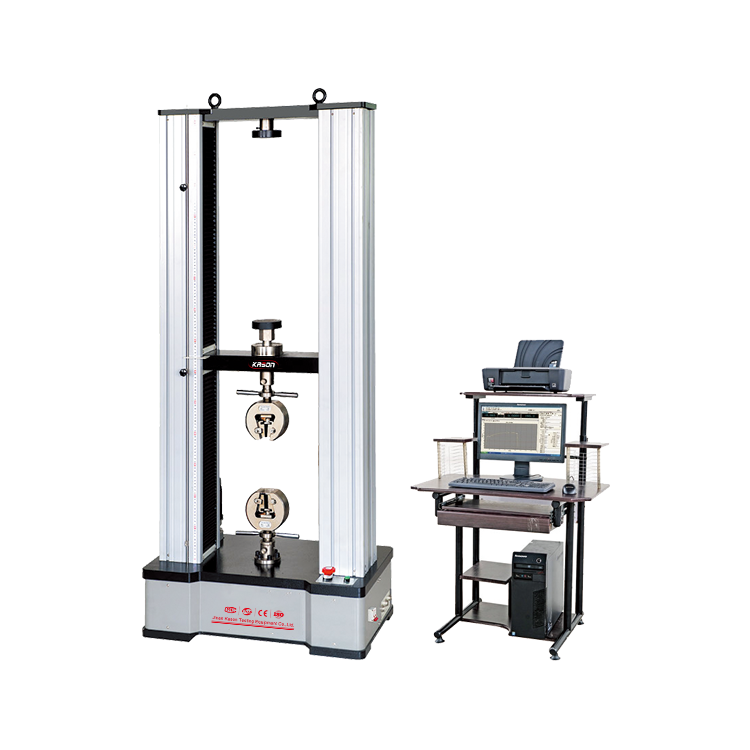

5kn Double Column Plastic Electronic Universal Tensile Testing Machine
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,
GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
| Model | ETM503 |
| Load cell | |
| Calibration standard | ISO 7500 |
| Load Capacity (kN) | 5 |
| Accuracy grade | ±0.5% of reading |
| Testing load accuracy | ±0.5% of reading |
| Deformation accuracy | ±0.5% of reading |
| Displacement Accuracy | ±0.5% of reading |
| Testing Force Range | 0.2%-100%FS |
| Force Resolution | 1/500000FS |
| Force accuracy | ±0.5% of reading |
| Controller | |
| Sampling frequency | Up to 1000 Hz |
| Closed loop control frequency | Up to 1000Hz |
| Resolution | 20 bit |
| Software | KASON TEST(Support English,Russian ,Turkish Language, etc. |
| Main frame | |
| Speed Range (mm/min) | 0.01-1000 |
| Control Accuracy | ±0.5% |
| Crosshead Travel(mm) | 1140mm |
| Tensile Testing Space(mm) | 800 |
| Compression Testing Space(mm) | 800 |
| Test width (mm) | 400 |
| Compression Platen (mm) | Ф100mm |
| Power Supply | AC220V±10%, 50Hz/60Hz |
| Overall Dimensions (L*W*H: mm) | 740 x 420 x 1720 |
| Net Weight(kg) | 160 |
