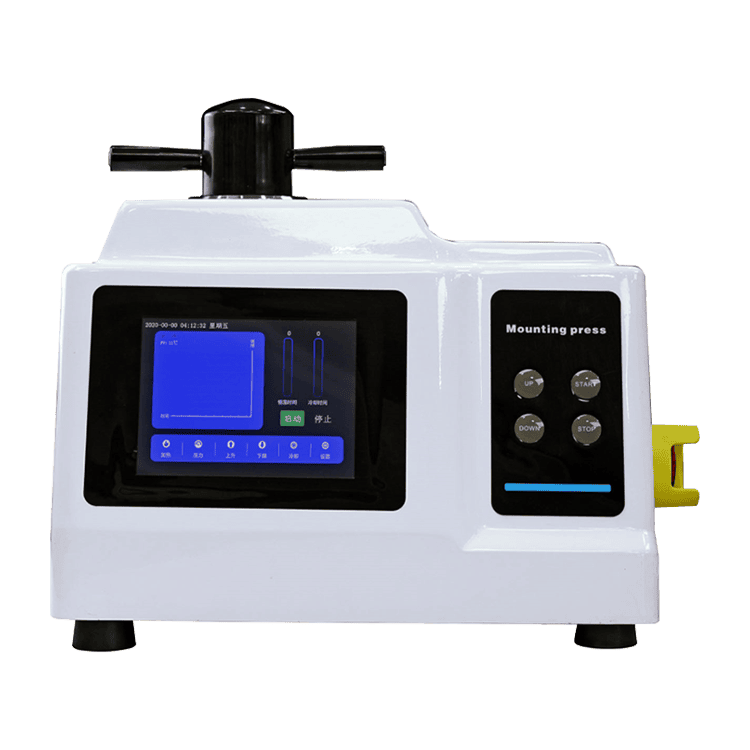

METPRESS-2AH30 Metallographic automatic hot mounting machine
1、Application
The METPRESS-2AH30 mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
2、Technical Parameters
|
Model |
METPRESS-2AH30 |
|
The Sample Diameter |
22mm OR 30mm OR 45mm (Choose One) |
|
Input power |
950W |
|
Input voltage |
220V 50HZ |
|
Holding time range |
0-99min |
|
Heating temperature range |
35~200 |
|
Cooling method |
Water cooling |
|
Dimension |
485*457*435mm |
|
Package Size |
610*546*687mm |
|
Net Weight |
51.8kg |
|
Gross Weight |
64.5kg |
