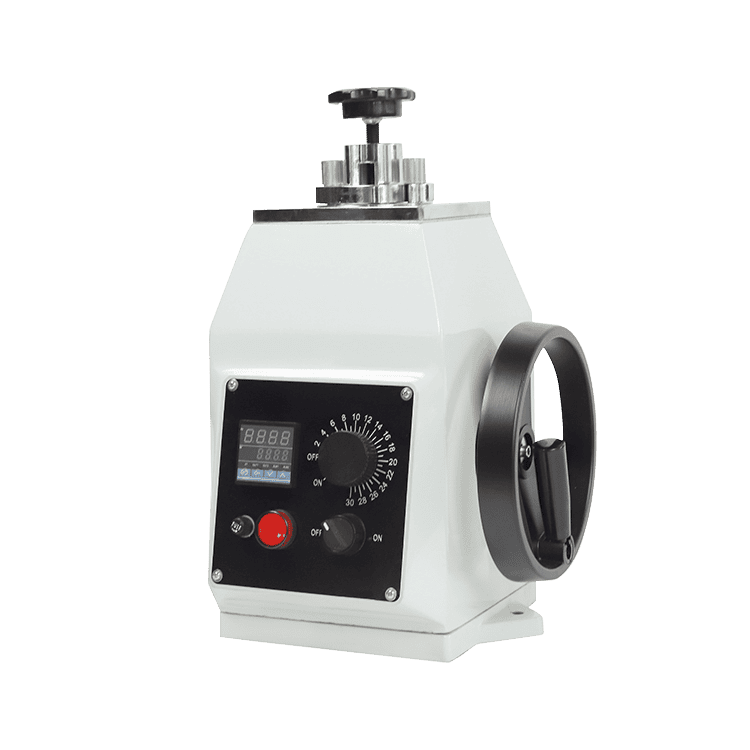

METPRESS-1M45 Metallographic hot mounting machine
Application：
The METPRESS-1M45 mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
Technical Parameters:
|
Model |
METPRESS-1M45 |
|
The Sample Diameter |
22mm OR 30mm OR 45mm (Please Choose One Sample Diameter) |
|
Temperature control range |
Room temperature-300℃ |
|
Timer Range |
0-30min |
|
Total power |
≤600W |
|
Dimension |
265*260*425mm |
|
Package Size |
460*370*550mm |
|
Net Weight |
32kg |
|
Gross Weight |
40kg |
