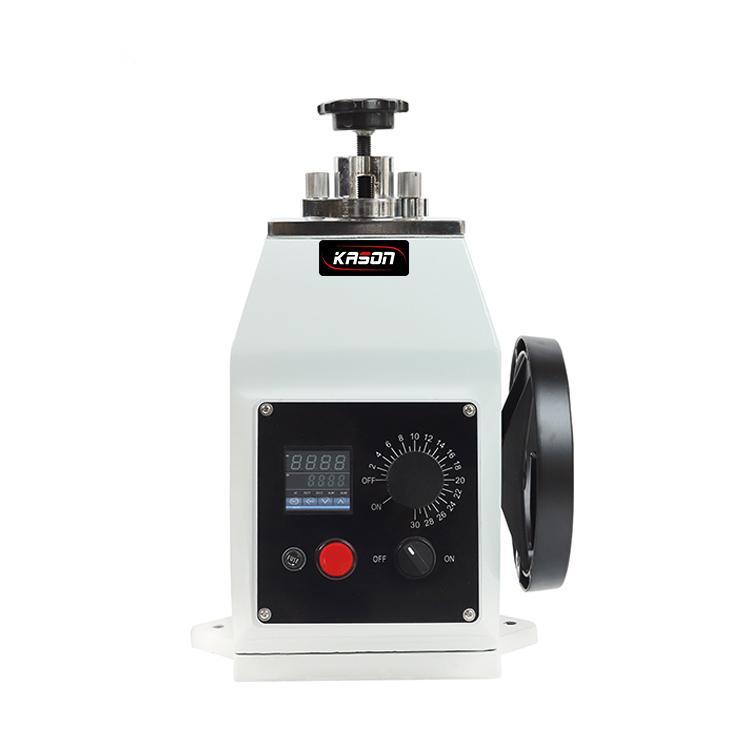

METPRESS-1M Manual Metallographic Specimen Mounting Press
1.Application:
METPRESS-1M Manual Metallographic Specimen Mounting Press suitable for the thermo-hardening plastic pressing of the small metallographic specimen which is not idiomorphic or hard to take.
After forming, it will be very easy to process the grinding, polishing of the specimen and it is also convenient to process measuring of metallographic structure under metallographic microscope.
2.Technical Parameters:
Model: METPRESS-1M
The Sample Diameter: 22mm OR 30mm OR 45mm
Heater Specifications: 600W, 220V, 50Hz
Dimension: 280*255*480mm
weight: 32kg
Cooling time: 1 to 99 min
Mounting quantity per time: 1
