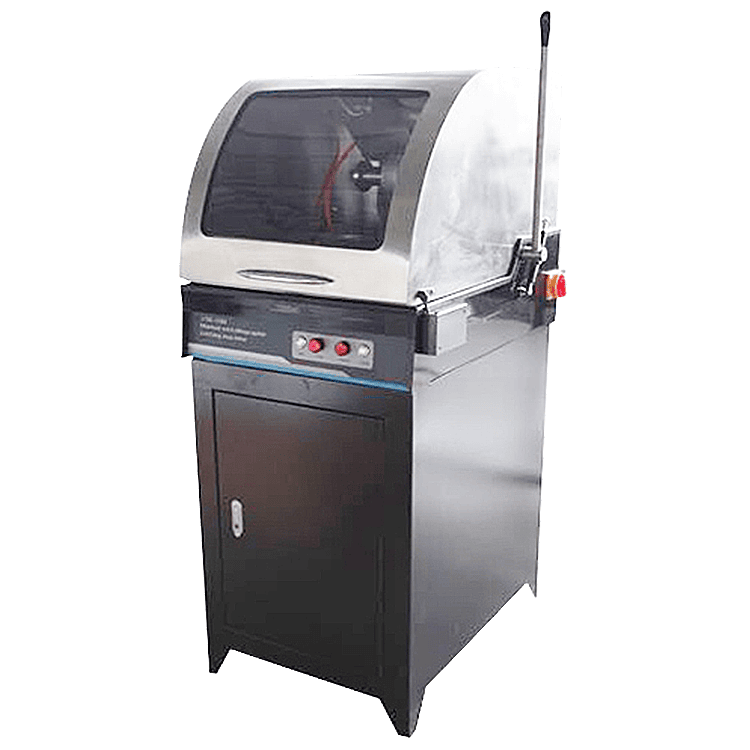

KSCUT-100SF Manual Metallographic cutting machine
1、Application
Model KSCUT-100SF metallographic specimen cutting machine is suitable for cutting general metallographicandlithofacies material specimens. This machine features safety & reliable performance, low noise andeasyoperation. It is the ideal instrument for specimen preparing purpose used in colleges, laboratories &factories.
2、Main Technical Parameters
Model
KSCUT-100SF
spindle speed
2800r/min
Max. cutting diameter
100mm
Cutting disc specification
350×2.5×32mm
motor
Y2-100L-3.0 KW
power supply
three phase four line (380v/50Hz)
Dimensions
780 x 740 x 1500mm
