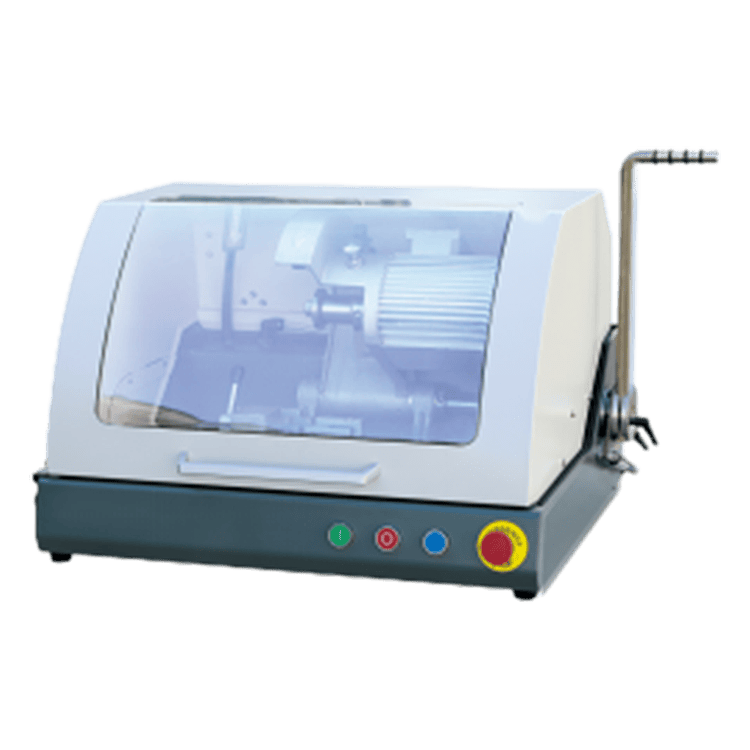

KSCUT-60SE Manual Metallographic cutting machine
1、Applications
KSCUT-60SE type sample cutting machine is suitable for cutting a variety of metal, non-metal materials of the workpiece, in order to observe the material metallographic, lithographic structure. The machine has a cooling device, the use of the configured coolant can take away the heat generated during cutting, to avoid the sample overheating and burn the sample tissue. The machine is easy to use, safe and reliable. It is one of the necessary equipment for making samples in factories, scientific research units and laboratories of colleges and universities
2、Main Technical Parameters
|
Model |
KSCUT-60SE |
|
Power supply |
380V、50Hz |
|
Main shaft rotating speed(r/min) |
2800 |
|
Cutting disc (mm) |
φ250×1.5×25.4 |
|
Max cutting diameter（mm） |
φ60 |
|
Motor power (KW） |
2.2 |
|
boundary dimension（mm） |
760×620×450 |
|
weight（Kg） |
82 |
