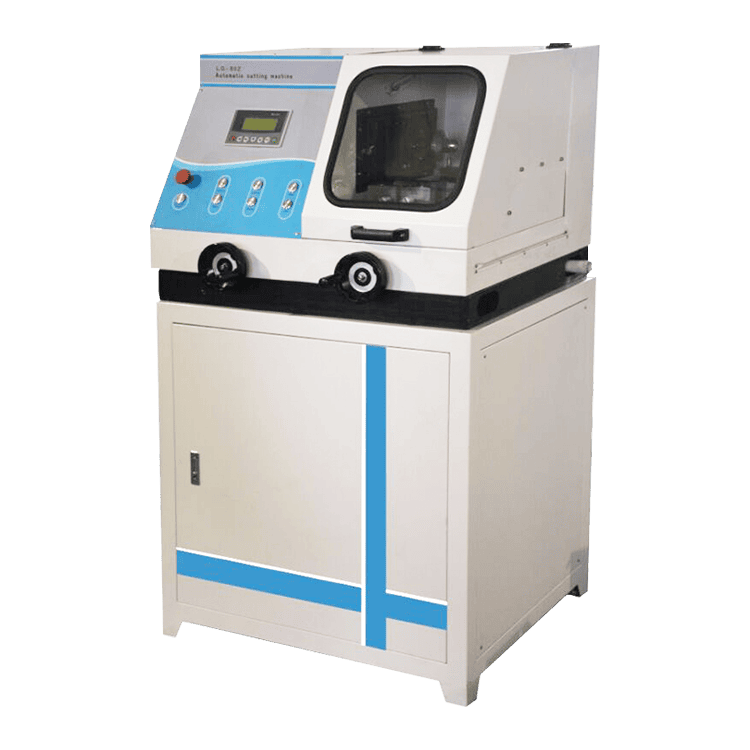

KSCUT-100ZF Manual&automatic Metallographic cutting machine
1、Introduction：
KSCUT-100ZF Manual And Automatic Metallographic Specimen Cutting Machine (Upright) is used to cut various metal and non-metal specimen so as to observe the material organization of metallographic and lithofacies.
This machine is Manual And Automatic Cutting together, it can be changed to manual or automatic arbitrarily. Under automatic operation, no need person to operate. Super-large worktable and super-length cutting distance, it could cut the big specimen.
With up-down moving function, it will reduce the consumption of grinding wheel.
With cooling device, it would take away the heat using the cooling liquid so as to avoid over heat to damage the specimen organization.
The advantage of this machine: easy to use, safe and reliable, it is one of necessary equipment for the factories, universities and colleges.
2、Parameters:
|
Model |
KSCUT-100ZF |
|
Shell material |
Steel |
|
Maximum cutting diameter |
100mm |
|
Y-axis movement |
200mm |
|
Worktable size |
290×300mm |
|
Cut-off wheel |
φ250×2.5×32mm |
|
Clamp table size |
Jig table left and right, center cutting edge |
|
Cutting method |
Manual/Automatic |
|
Cutting speed |
0.1-2.5mm/s |
|
Cutting distance |
0-200mm |
