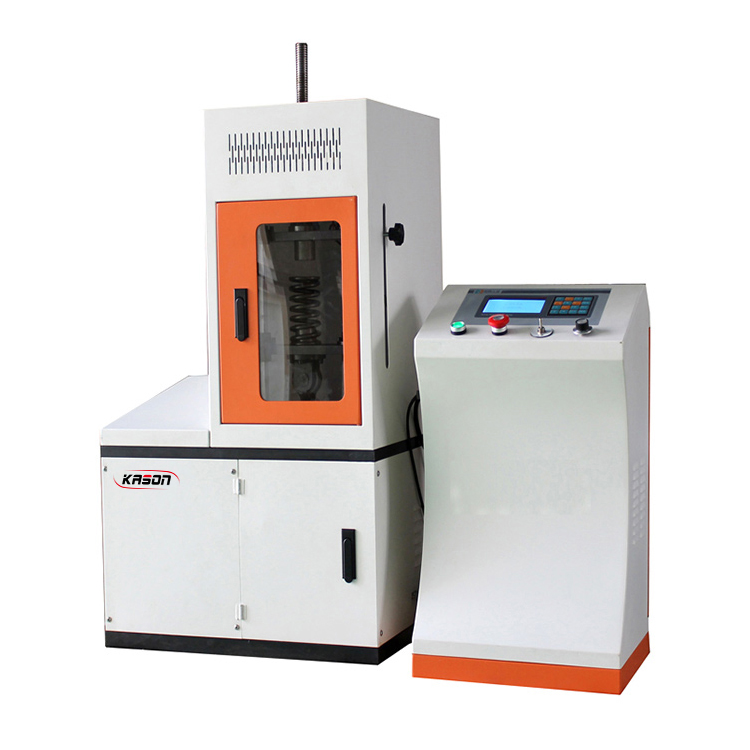

1/2/3kn High Quality Multistation Mattress Mechanical Spring Fatigue Tester
Application:
This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers, elastic components and other components.
Main parameters:
|
Model |
KTPL-1S |
KTPL-2S |
KTPL-5S |
KTPL-10S |
KTPL-20S |
KTPL-50S |
|
Max. Load(kN) |
1 |
2 |
5 |
10 |
20 |
50 |
|
Vertical maximum space |
300mm(Can be customized)
|
|||||
|
Transverse maximum space |
150mm Can be customized
|
|||||
|
Frequency range (adjustable) |
0-5Hz 300 times/minute
|
|||||
|
Test frequency |
According to actual specimen |
|||||
|
Counting stop accuracy |
1 |
|||||
|
Maximum deformation of specimen |
100mm |
|||||
|
Counter capacity |
999999999 |
|||||
|
Test station |
1（Standard） Can be customized
|
|||||
|
Dimension |
1000*750*1600mm |
|||||
|
Weight |
1000kg |
|||||
|
Power |
AC 380V±10% 50Hz |
|||||
