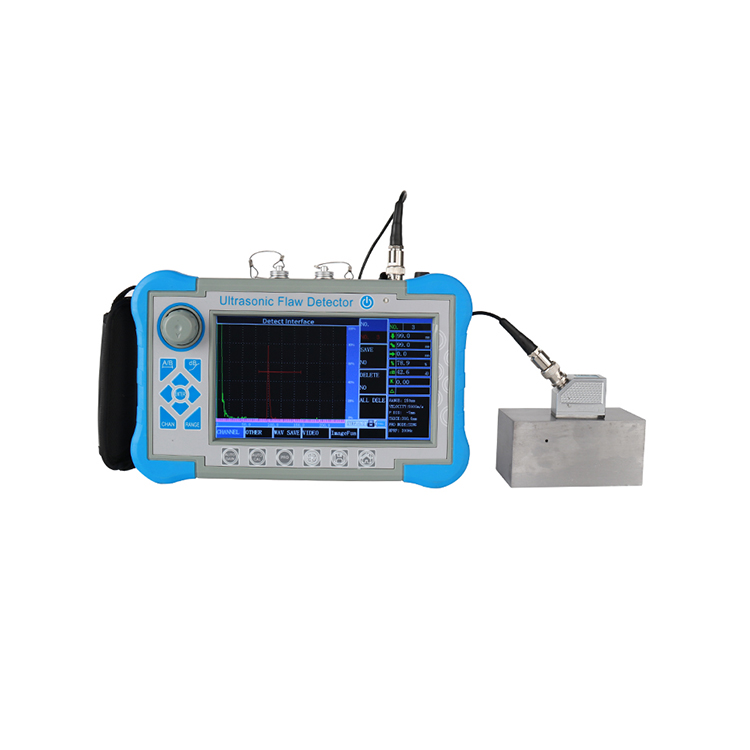

KS-9103 Digital Ultrasonic Flaw Detector
I. Introduction
Digital ultrasonic flaw detector is advanced type, which is touch screen, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the work-piece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.II. Specification
|
Display |
7 inch TFT color screen，800*480 resolution |
|
Operation mode |
Button, Rotary, Touch Screen |
|
Power supply |
Lithium Ion Battery |
|
Battery capacity |
5.0Ah |
|
Power voltage |
12V |
|
Power quantity |
1 |
|
Working time |
≥8 hours |
|
Adapter input |
DC100~240V 50Hz/60Hz |
|
Adapter output |
AC 12V |
|
Adapter power |
36W |
|
Data storage |
SD card(16G) |
|
Alarm |
1 |
|
Working Temperature |
-10℃~45℃ |
|
Storage Temperature |
-20℃~60℃ |
|
IP Grade |
IP65 |
|
Dimension |
245*155*55mm |
|
Weight |
1.18kg(included battery) |
