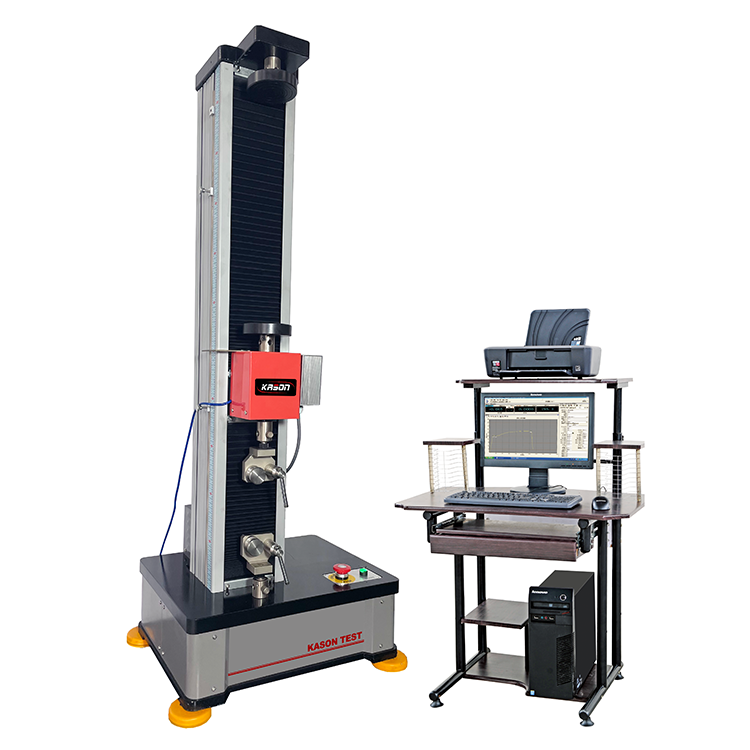

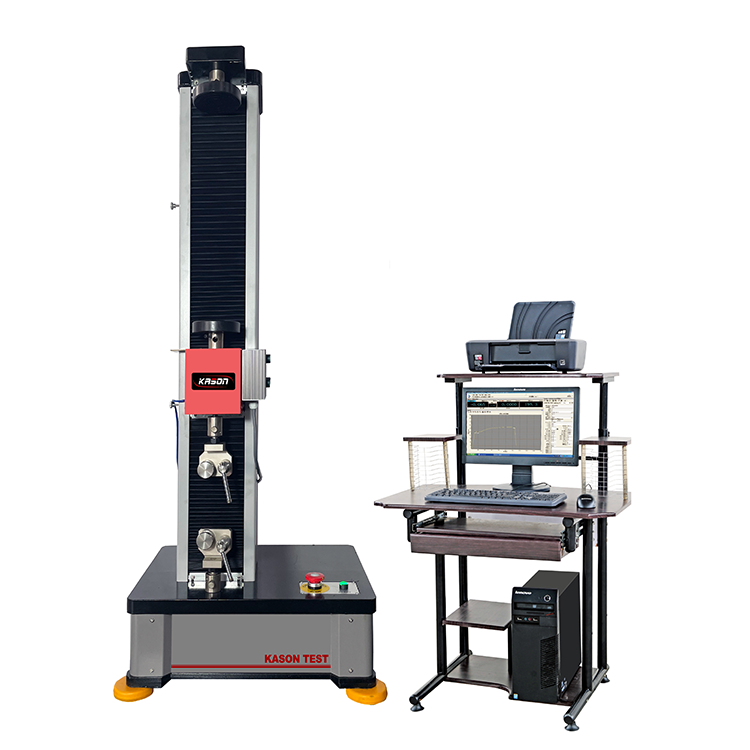

WDW-1E/WDW-2E/WDW-3E/WDW-5E ASTMD 7269 yarn wrapping tensile strength testing machine
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
Model
WDW-1E/WDW-2E/WDW-3E/WDW-5E
Structure
Single column double spaces
Max. Load(kN)
1 /2 /3 /5
Material
All aluminum alloy surface spray painting shell
Load accuracy
ISO 7500 Class0.5
Load range
0.2%～100%F·S
Load resolution
1/ 300000
Resolution of displacement
0.01mm
Test speed(mm/min)
0.05-500 stepless arbitrary setting
Speed accuracy
within ±1% set speed
E-Tensile space(mm)
600 (can be customized)
E-Compression space(mm)
600 (can be customized)
D-Test width(mm)
100
F-Beam travel distance(mm)
772
H-Workbench thickness(mm)
26
G-Base height(mm)
158
Power supply
AC220V±10%，50Hz/60Hz(can be customized)
