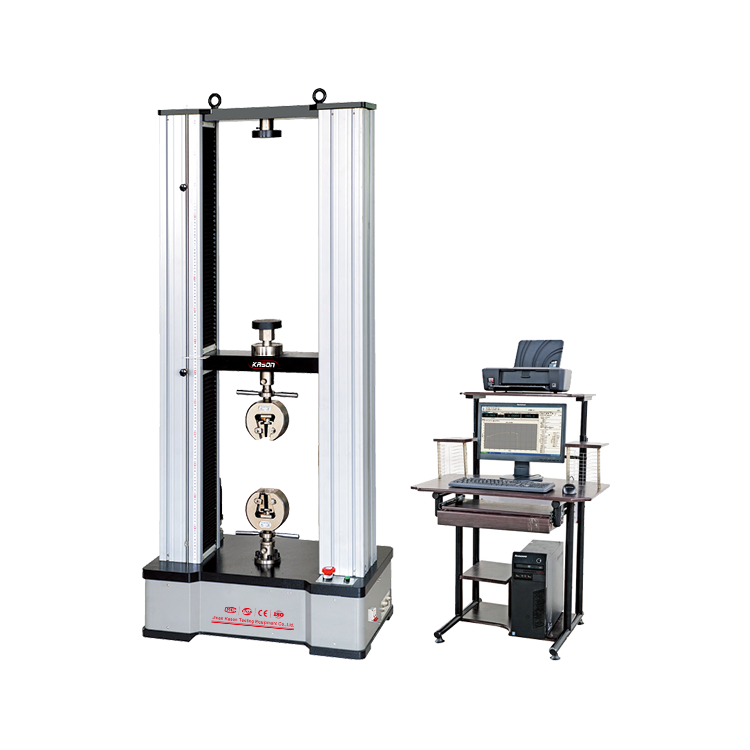

Class 0.5 Computer control 30KN 50KN universal tensile testing machine
Overview:
ETM series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Specifications:
Model
ETM 304
ETM 504
Load cell
Calibration standard
ISO 7500
Load Capacity (kN)
30
50
Accuracy grade
±0.5% of reading
Testing load accuracy
±0.5% of reading
Deformation accuracy
±0.5% of reading
Displacement Accuracy
±0.5% of reading
Testing Force Range
0.2%-100%FS
Force Resolution
1/500000FS
Force accuracy
±0.5% of reading
Controller
Sampling frequency Hz
Up to 1000 Hz
Closed loop control frequency
Up to 1000Hz
Resolution
20 bit
Software
KASON TEST(Support English,Russian ,Turkish Language, etc.
Main frame
Speed Range (mm/min)
0.01-500
Control Accuracy
±0.5%
Crosshead Travel(mm)
1100mm
Tensile Testing Space(mm)
700
Compression Testing Space(mm)
700
Compression Platen (mm)
Ф100mm
Power Supply
AC220V±10%, 50Hz/60Hz
Overall Dimensions (L*W*H: mm)
850 x480 x 1865
Net Weight(kg)
460
