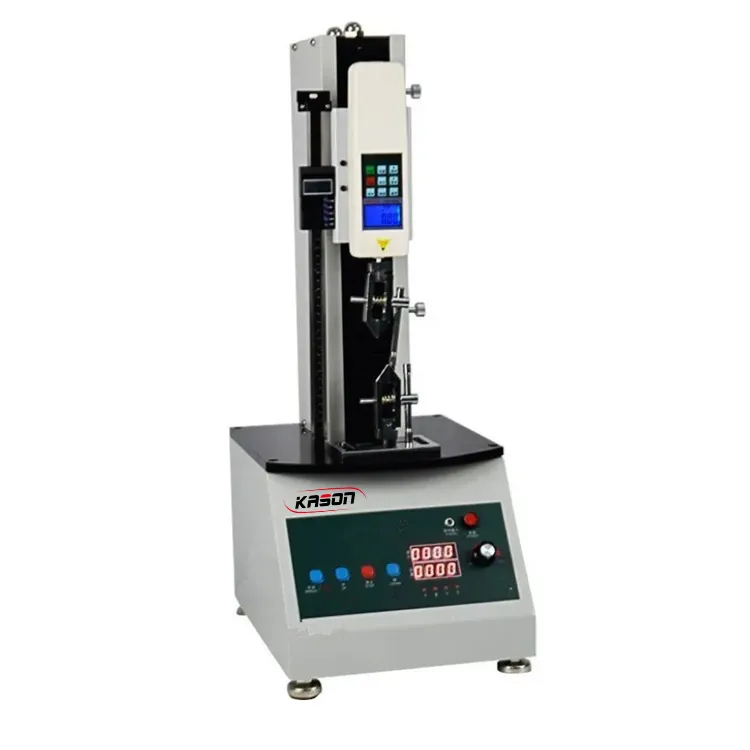

KS-1000N-700mm Electric push pull test machine
Product Description
Vertical machine bed is a tension,compressive test stand applied with all kinds of PushPull Gauge. The Test Stand has good stability,wide application and convenient to use. It hasnopolar timing,convert functions of manually operation and automatic, specialized for tension,compression,insertion,withdraw and fracture test.
Main Parameters
| Model | KS-500N-20mm | KS-500N-400mm | KS-500N-700mm | KS-1000N-200mm | KS-1000N-400mm | KS-1000N-700mm |
| Load | 500N | 1000N | ||||
| Effective Stroke | 200mm | 400mm | 700mm | 200mm | 400mm | 700mm |
| Testing speed | 25-280mm/min | |||||
| Voltage | AC220V , or can be custom made | |||||
| Dimension | 28*34*78cm | 28*34*98cm | 28*34*127cm | 28*34*78cm | 28*34*98cm | 28*34*127cm |
| Net weight | 38kg | 40kg | 42kg | 38kg | 40kg | 42kg |
