Application:

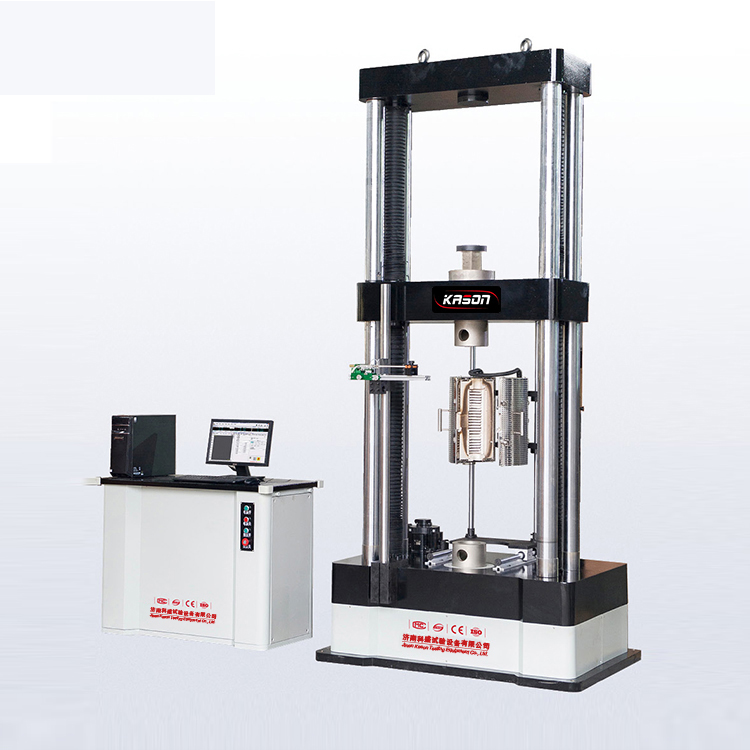

ETM series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
Standards:
EN 10002-2,EN 10002-4,ISO 34,ISO 37,ISO 178,ISO 527,ISO 1184,ISO 6892,ISO 9513,ASTM D412,ASTM D638,ASTM D790,ASTM D882,ASTM E4,ASTM E8,ASTM E83,BS 1610,JIS B7721
Technical Parameters:
Model | ETM 503H | ETM 104H | ETM 204H | ETM 304H | ETM 504H | ETM105H |
Calibration standard | ISO 7500 | |||||
Load Capacity (kN) | 5 | 10 | 20 | 30 | 50 | 100 |
Accuracy grade | ±0.5% of reading | |||||
Testing load accuracy | ±0.5% of reading | |||||
Force Resolution | 1/500000FS | |||||
Force accuracy | ±0.5% of reading | |||||
Resolution | 20 bit | |||||
Software | KASON TEST(Support English,Russian ,Turkish Language, etc. | |||||
Speed Range (mm/min) | 0.01-1000 | 0.01-500 | ||||
Control Accuracy | ±0.5% | |||||
Crosshead Travel(mm) | 1000mm | 1100mm | ||||
Tensile Testing Space(mm) | 670 | 670 | 670 | 770 | 770 | 650 |
Compression Testing Space (mm) | 900 | 900 | 900 | 1000 | 1000 | 1000 |
Test width (mm) | 450 | 450 | 550 | |||
Compression Platen | Ф80mm |
