1. Application

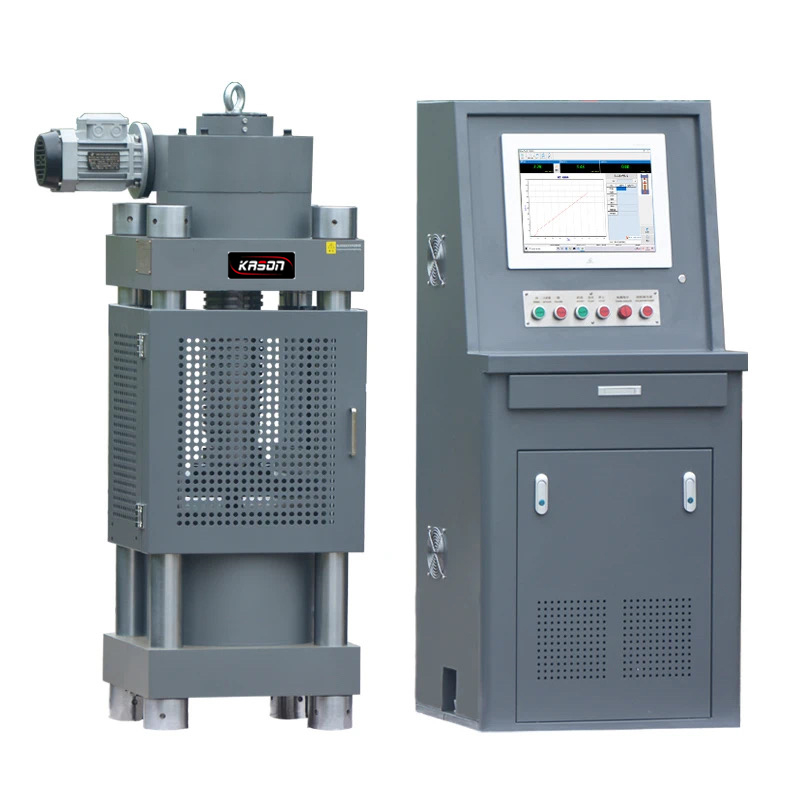

YAW-D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model
YAW-2000S
YAW-2000D
YAW-3000D
Max. Load
2000kN
3000kN
Control method
Computer auto control loading process
Test space adjustment mode
YAW-2000S Manual screw adjust
YAW-2000D/YAW-3000D Electric ball screw adjust
Test class
1 class
Load measuring range
4-100% of F.S
Load accuracy
±1.0%
Upper compression platen (mm)
220x250
220x250
Lower compression platen (mm)
220x250
220x250
Piston stroke(mm)
50
50
Distance between upper and lower plate
320mm
320mm
Power supply
AC380V/220V
Overall dimension (mm)
1200x450x1150
1200*600*1200
Weight (kg)
650
1000
