1. Application

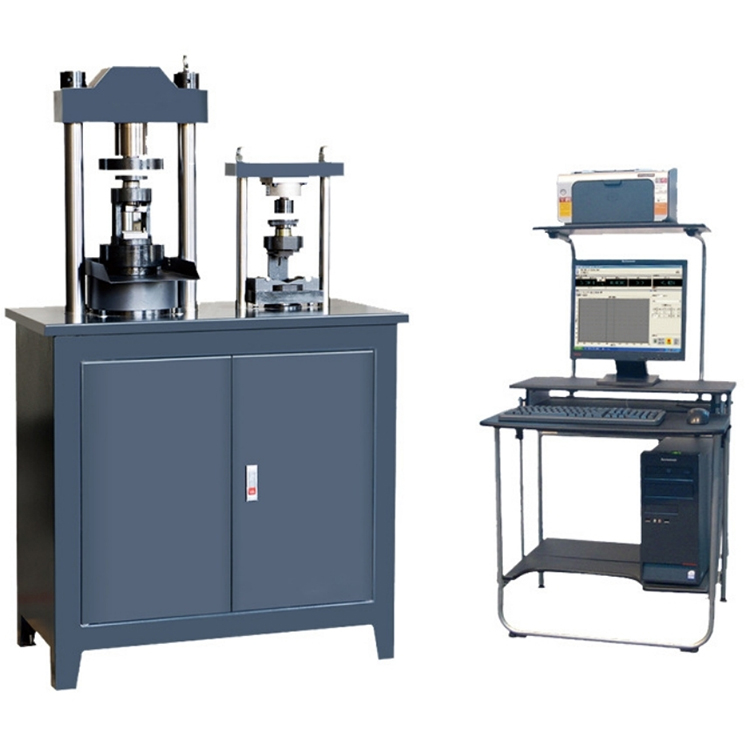

The testing machine tests the mechanical properties of cement, mortar, brick, concrete and other building materialswith servo motor acceleration and deceleration control technology, showing the load value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
2. Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of HydraulicCement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars;
BS EN 196-1: Methods of testing cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone;
ASTM C170 / C170M: Standard Test Method for Compressive Strength of Dimension Stone;
EN12390-5 BS 1881:118, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3. Main Technical Parameters
MODEL |
KSCTM305FW |
Control and deal mode |
Computer constant control and auto dealing |
Test space adjustment method |
Block adjustment test space |
Maximum compression force |
300kN |
Maximum flexural force maximum test force(KN)
|
10KN |
Test Accuracy |
Class 1 |
Load test Range |
2%-100% of FS |
Displacement indicate error |
±1% |
Loading Rate |
0.3~10kN/S(compression)/50(bending) |
Accuracy of Loading Speed |
±5% |
Compression space |
220mm |
Upper and low Compression platens size |
Φ155(compression)/ 80×150(bending) |
Max.Piston Stroke |
80(compression)/ 60(bending) |
Piston Diameter |
Φ130mm(compression)/Φ50mm(bending) |
Max. Hydraulic Pressure |
25MPa |
Power |
AC380V/220V, 50-60 Hz |
