1. Application

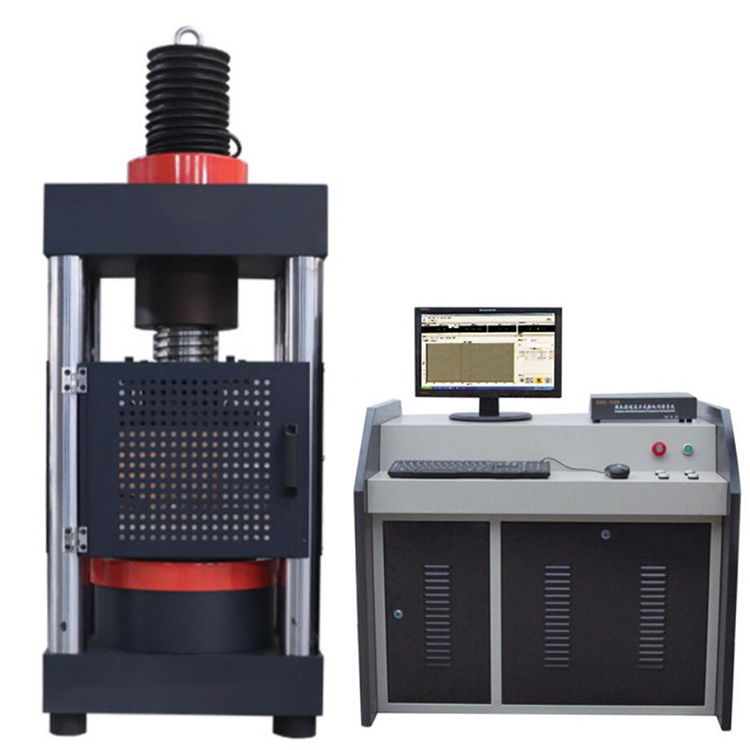

This series of compression testing machine is widely used for compression strength determination of cement, concrete and rock. Equipped with optional fixtures and measurement devices, it can be used for concrete splitting tensile test and flexure test.
2. Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
3. Applicable Specimen size:
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
Rectangular sample: 400x200x200mm, 400x200x400mm etc;
Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
Remark: test space & compression platen can be customized according to specified specimen size.
4. Main Technical Parameters
MODEL |
KSCTM306HE |
Control and deal mode |
Computer auto control loading process |
Test space adjustment method |
Electric ball screw adjust
|
Maximum compression force |
3000kN |
Test Accuracy |
Class 1 |
Load test Range |
2%-100% of FS |
Displacement indicate error |
±1% |
Compression space |
330mm |
Upper and low Compression platens size |
370*370mm |
Max.Piston Stroke |
50 |
Piston diameter
|
Φ310mm |
Pressure of hydraulic pump |
40MPa |
Power |
AC380V,1.1KW, 50-60 Hz |
Dimensions |
About 1000×600×1500 |
Weight |
About 1600KG |
