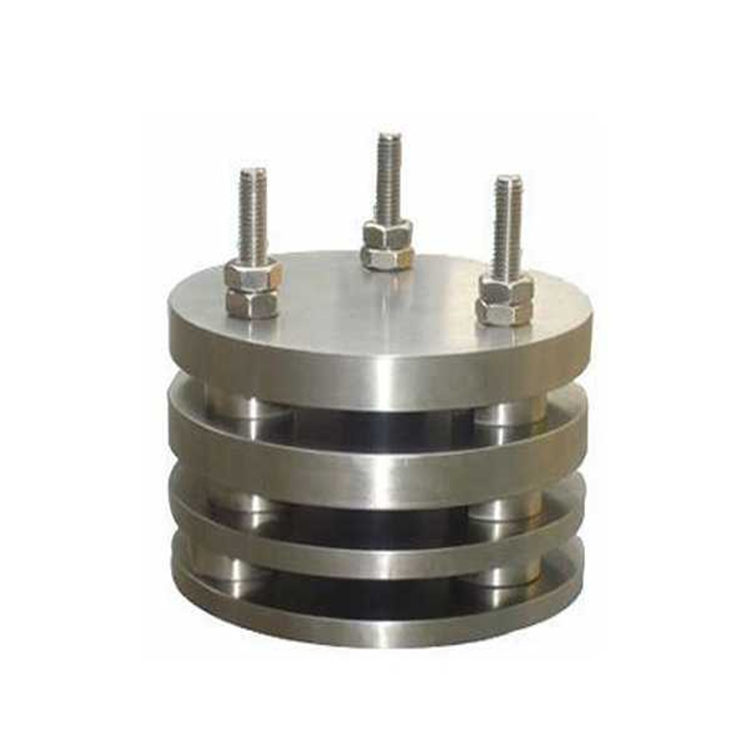

KS-RCD Rubber Compression Permanent Deformer
Product Description
Rubber compression permanent deformer is composed of parallel steel plate limiter and fastener, in line with GB7759, ISO815 requirements, used for vulcanized rubber, thermoplastic rubber at room temperature, high temperature and low temperature conditions, with a certain compression rate, after a certain compression time after the determination of rubber deformation.
Specification
|
Sample |
Type A |
Type B |
|
Diameter |
29±0.5mm |
13±0.5mm |
|
Height |
12.5±0.5mm |
6.3±0.5mm |
|
Height Limiter Type |
Type A (9.12mm, 9.38mm, 9.62mm） |
Type B |
|
Compression Ratio 25% |
9.3～9.4 |
4.7～4.8 |
|
Compression Ratio 15% |
10.6～10.7 |
5.3～5.4 |
|
Compression Ratio 10% |
11.25～11.3 |
5.65～5.7 |
|
Overall Dimension |
200 × 120 × 140 mm or Φ:115mm H：110mm |
|
|
Weight |
11Kg |
|
