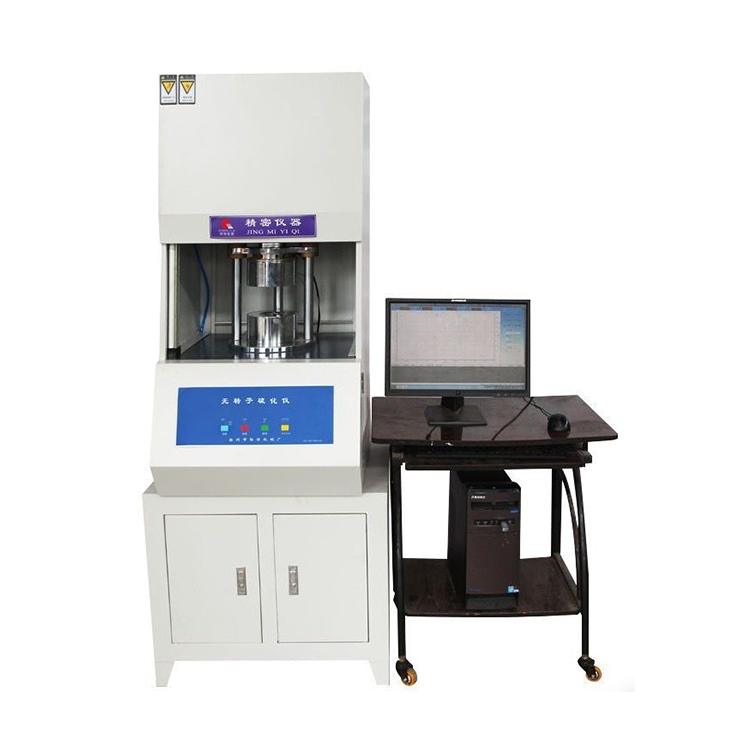

KS-MN200 Computer Control Rubber Mooney Viscometer
Application:
The rubber no rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Standard:
ASTM-D2084,ASTM-D5289,ISO-6502
Specification:
|
Test data |
Mooney viscosity, Mooney scorch |
|
Standard |
ISO289, ISO667, GB/T1232-92 HG/T3432-1989 |
|
Temperature measure |
measuring range: room temperature ~ 200 ℃ |
|
|
Resolution: 0.1 ° C |
|
|
fluctuation: ± 0.3 ° C (after feeding) |
|
Temperature rise time |
≤ 10min |
|
The maximum test time |
Mooney: 10min |
|
|
Scorch: 120min (modification time during testing) |
|
Mooney value measure range |
0 to 200 |
|
Mooney value resolution |
0.1 Mooney value |
|
Mooney value accuracy |
± 0.5 Mooney value |
|
Calibrate accuracy |
100±0.5 Mooney value |
|
Rotor speed |
2 ± 0.02r/min |
|
Rotor dia. |
big: 38.1±0.03mm, small: 30.48±0.03mm |
|
Power |
AC220V ± 10% 50HZ |
