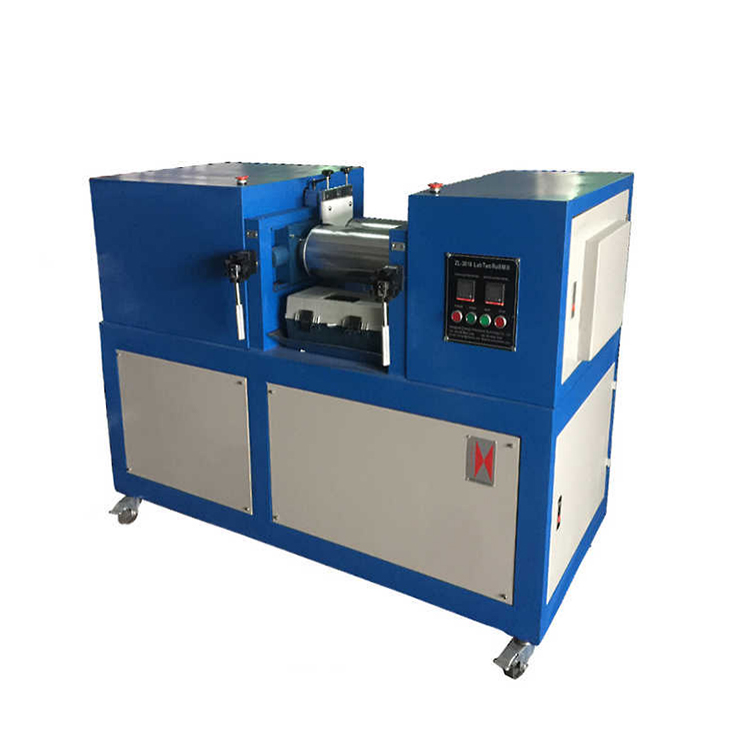

KS-RMM300 Electric Heating Two Roll Mixing Mill for Plastic Rubber
Scope Of Application:
Lab Scale Two Roll Mill For Rubber And Plastic is suitable for polymers such as rubber and plastic industry mixing process PVC, masterbatch and other chemical raw materials. As the raw material and mixed with the agent, and to achieve the desired color and quality. The machine uses special heating the mold, the roller surface temperature uniformity, never delamination, sample thickness adjustable and attached machine safetydevices, lightweight and easy to use.
Parameters:
|
Model |
Lab Scale Two Roll Mill For Rubber And Plastic |
|
Mixed capacity |
0.5-1kgs / 2-3kgs / 5-7 kgs |
|
Temperature |
room temperature ~ 300 ℃ |
|
Temperature control |
LED display, buttons to set the input and display output value |
|
Temperature control |
P.I.D controlled |
|
Heater |
cylindrical mold is heated |
|
Warm-up time |
room temperature ~ 150 ℃ about 20min |
|
Temperature accuracy |
± 3 ℃ |
|
Roller dimensions |
diameter 3.9 "× L13.7" |
|
Drum revolutions ratio |
Standard revolutions ratio 1:1.25 |
|
Roller hardness |
HRC 50 ~ 60 |
|
Power |
about 2800W |
|
Protection device is attached state of emergency |
Security |
|
Volume |
960*550*1150 (W* D* H) mm |
|
Power source |
AC380V, 15A |
|
Weight |
about 380kg |
