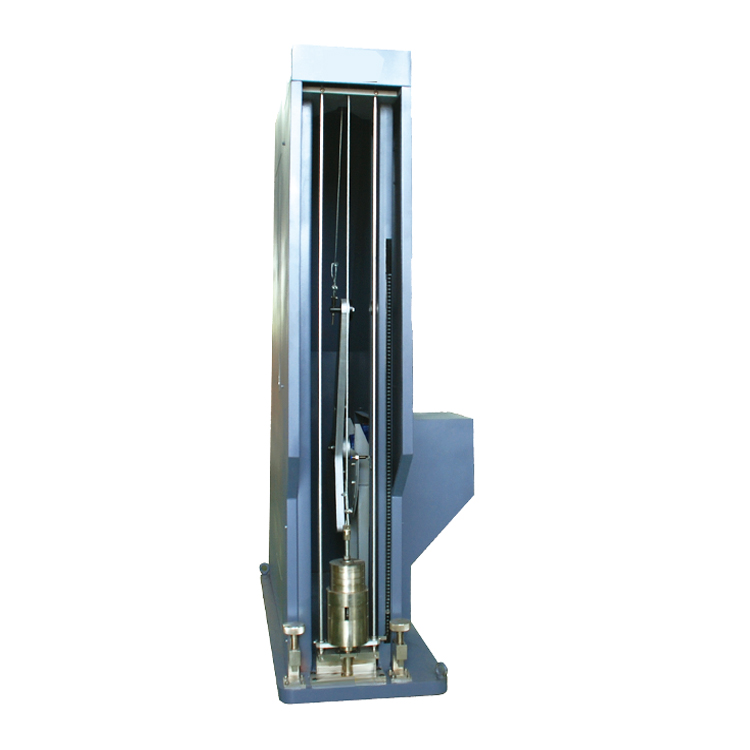

IEC-60794-1-2-E4 GCJ-1000 Optical Fiber Cable Impact Testing Machine Tester
1.Overview
GCJ-1000 Series Optical Fiber Cable Impact Testing Machine is intended to determine the ability of optical fiber cable withstand impact
2.Technical Parameters
Impacting height: 300mm, 1000mm, adjustable.
Mass of hammer
Six combinations of 0.5Kg, 1Kg, 2Kg, 3Kg, and 6Kg.
Testing times range: 1-9999.
Setting range of frequency
Setting range of testing times for national standard: 10～20 times/min. Setting range of testing times for military standard: 10～30 times/min.
Power supply: 3-phase 4-wire, 50Hz, 2KW.
Ambient temperature: 10℃～40℃.
Ambient humidity: less than 80% (Non-condensing).
