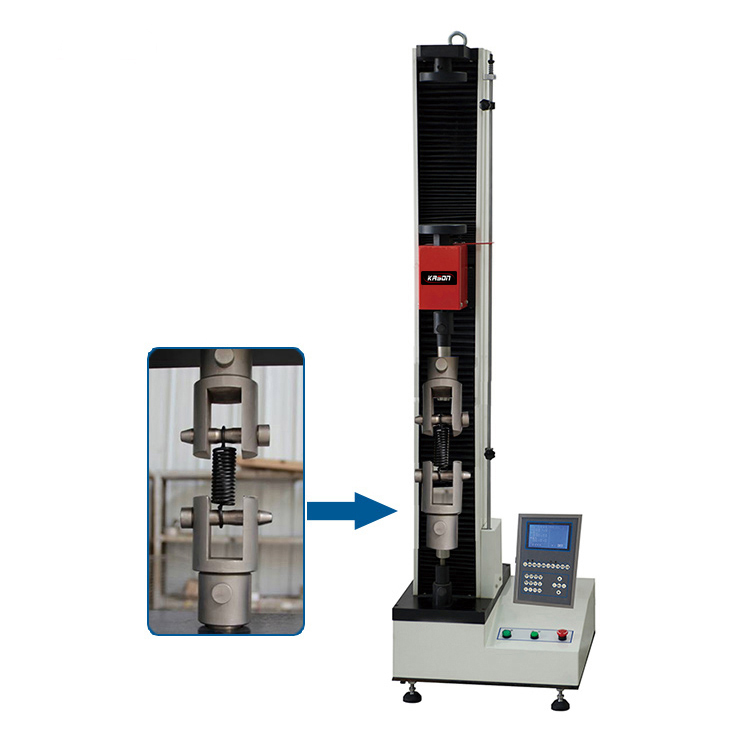

TLS Digital Display Spring Testing Machine
1.Application:
Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed, tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.
2.Main specification:
|
Model |
TLS- 005 |
TLS- 01 |
TLS- 02 |
TLS- 05 |
TLS- 1 |
TLS- 2 |
TLS- 3 |
TLS- 5 |
|
Max test force（N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
|
Structure |
Single column, double spaces（lower tensile，upper compression） |
|||||||
|
Control method |
Single chip control |
|||||||
|
Test accuracy |
1 class |
|||||||
|
Test force test arrange (F·S) |
2%～100%F·S |
|||||||
|
Test force value relative error |
≤±1% |
|||||||
|
Displacement value relative error |
≤±1% |
|||||||
|
Displacement resolution |
0.01mm |
|||||||
|
Deformation value relative error |
≤±（50+0.15L）um |
|||||||
|
Speed adjust range |
0.05-500mm/min（stepless speed regulating） |
|||||||
|
Speed relative error |
≤±1% |
|||||||
|
Effective tensile space |
Standard: 600mm Heighten: 850mm |
|||||||
|
Effective compression space |
Standard: 600mm Heighten:850mm |
|||||||
|
Pressure plate size |
110mm |
|||||||
