Overview

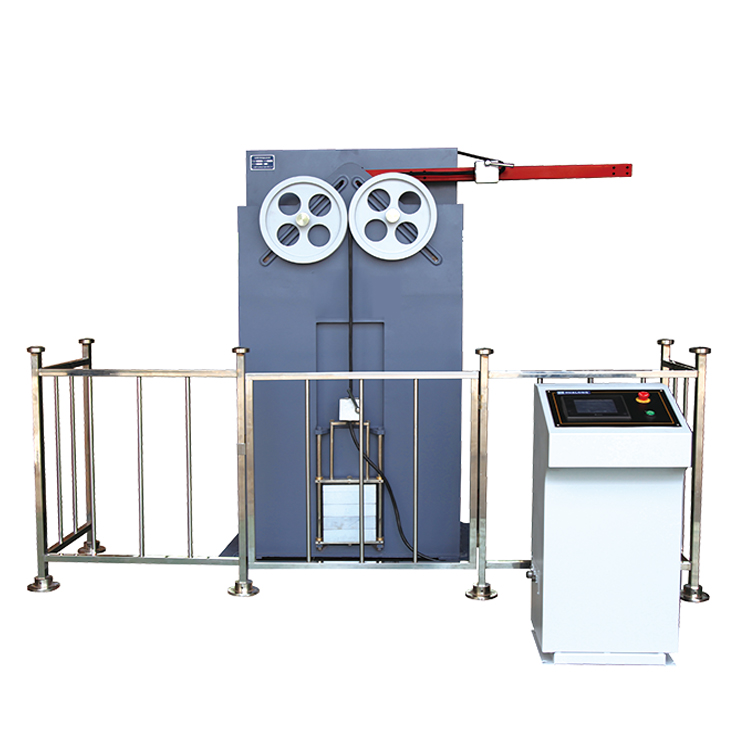

GWQ-1000 Series Optical Fiber Cable Repeated Bending Testing Machine is intended to establish the ability of a fiber optic cable to withstand repeated bending (cyclic flexing).

Technical Parameters

1. Bending angle:±90°;
2. Setting range of testing times: 1～9999;
3. Setting range of frequency: 10～30 times/min;
4. Mass of hammer: the mass of pre-stressed hammer is 27.5kg, in which, poise bracket (5kg), 4 5kg poises and 1 2.5 poise. The poise is added and adjusted according to the test requirement of the optical cable;
5. Power supply: 3-phase 4-wire, 50Hz, 1.5KW. In which, power of motor is 0.75KW;
6. Ambient temperature: 10℃～40℃
7. Ambient humidity: less than 80% (Non-condensing).
