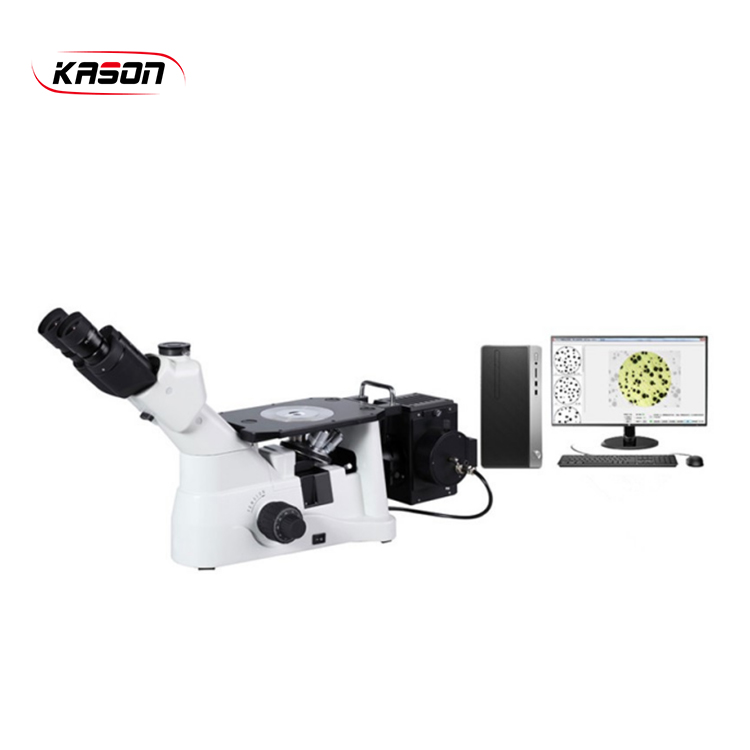

FXD-30MW Large trinocular inverted metallurgical microscope

Introduction:

It provides superior image quality, stable and reliable mechanical structure, easy operation and complete accessories. It is widely used in metallographic analysis of teaching and scientific research and material testing in factory laboratories.

Eyepiece and objective

High eye point, ultra wide field field eyepiece, PL10x/22mm, providing a wider and flat viewing space and can be equipped with various micrometers for measurement, infinity flat field achromatic long working distance professional metallographic objective , no cover glass design.

Observation tube

Hinged trinocular, adjustable visibility, 45° tilt, photographic camera, capture and save observation images, configuration computer and professional software for image analysis.

Focusing mechanism

Low-handed coarse-tuning coaxial focusing mechanism with coarse adjustment elastic adjustment device, coarse adjustment of 38mm per revolution, fine adjustment accuracy of 0.002mm.

Lighting system

Reflective Kola illuminator with iris diaphragm and central adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the life of halogen bulbs.

Stage

The coaxial low hand position adjustment moving ruler and the carrier extension plate can be added to expand the application space to meet the needs of customers with different needs.

Technical Specification

Metallographic Image Analysis Software:

The “Specialized Metallographic Image Analysis Computer Operating System” configured by the metallographic image analysis system processes and compares the collected sample maps, real-time comparison, detection, rating, analysis, statistics and output graphic reports. The software combines today's advanced image analysis technology, perfect combination of metallographic microscope and intelligent analysis technology. The system measurement and evaluation results are fast and correct, in line with national standard (GB) and other relevant industry standards (JB/YB/HB/QC/ DL/DJ/ASTM, etc.). The system has a complete Chinese interface, which is simple and clear and easy to operate. It can be operated freely after simple training or according to the instruction manual. It also provides a quick way to learn about metallography and popularization.

The main function:

-- Image editing software: image capture, image storage and more than ten functions;

Image software: image enhancement, image overlay and more than ten functions;

-- Image measurement software: dozens of measurement functions such as perimeter, area, and percentage;

-- Grain size measurement rating (grain boundary extraction, grain boundary reconstruction, single phase, two phase, grain size measurement, rating);

-- Measurement and rating of non-metallic inclusions (including sulfides, oxides, silicates, etc.);

-- Pearlite, ferrite content measurement, rating; ductile iron graphite spheroidization rate measurement rating;

-- Decarburization layer, carburized layer measurement, surface coating thickness measurement;

-- Weld seam depth measurement

-- Phase-area measurement of ferrite and austenitic stainless steels;

-- Contains metallographic maps of nearly 470 commonly used metal materials for comparison, to meet the requirements of most units of metallographic analysis and inspection;

-- Due to the increasing number of new materials and imported grades, materials and assessment standards that have not been entered into the software can be customized and entered.
