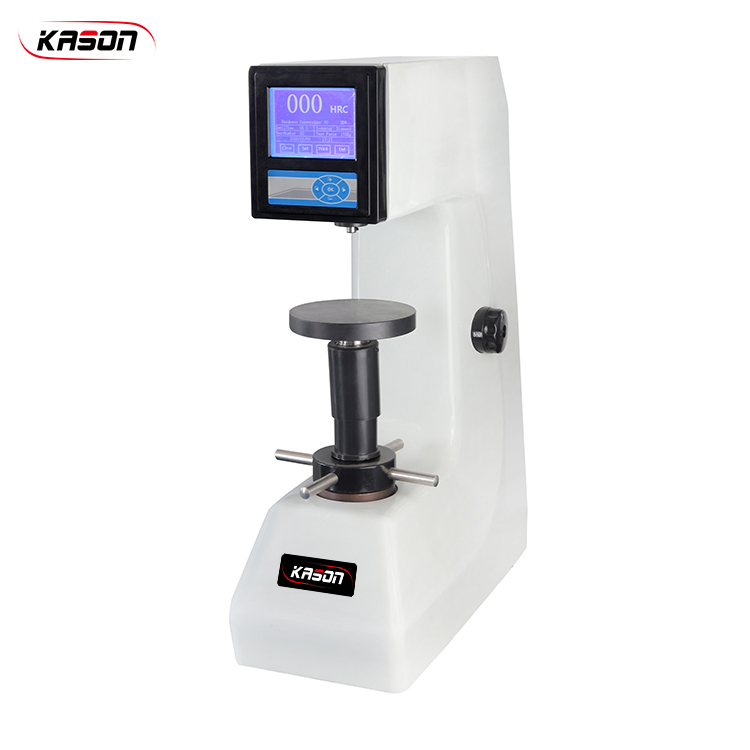

HTR-150S Digital Rockwell Hardness Tester
Application:
HTR-150S Digital Display Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure
Specifications:
|
Model |
HTR-150S |
|
Measuring Range |
20-88HRA, 20-100HRB, 20-70HRC |
|
All Testing Force |
60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N) |
|
Max. Height Of Speciment |
210 mm |
|
Max. Depth Of Speciments |
165 mm |
|
Min. Scale Value |
0.1HR |
|
Indication Of Hardness Value |
Digital Display With Large LCD Screen |
|
Net Weight |
98 KG |
|
Overall Dimension |
522 x 220 x 729mm (L×W×H) |
|
Power Supply |
AC220V, 50Hz |
