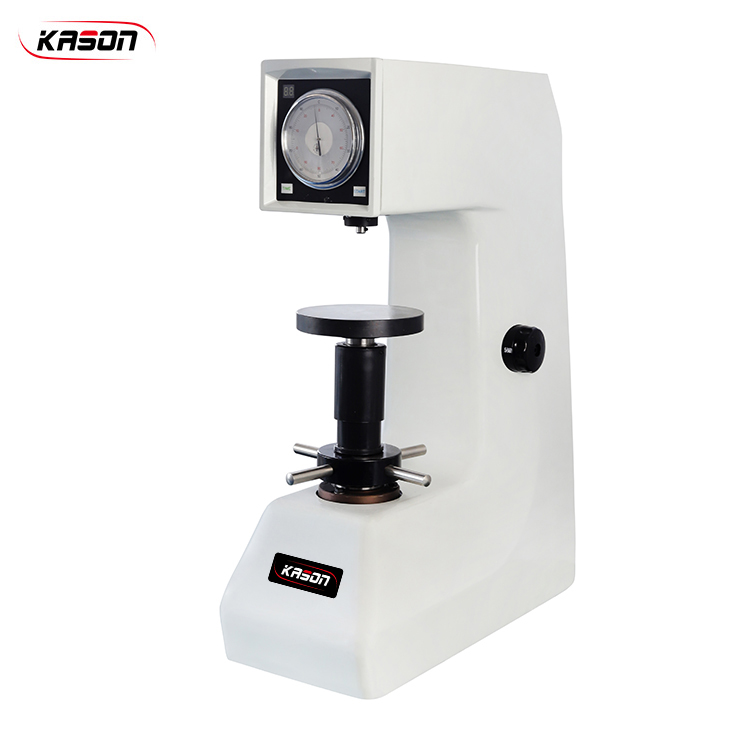

HTR-150D Rockwell Hardness Tester
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Specifications:
Model: HTR-150D
Indication Of Hardness Value: Dail Display
Preliminary Test Force: 98 N.07N
Total Test Force: 588.4N, 980.7N, 1471N (60, 100, 150kgf)
Test Range:(20-88)HRA; (20-100)HRB; (20-70)HRC.
Ball indenter:∮1.588mm
Max. Test Height:200mm
The Distance Between Pressure Head Center And The Wall: 130mm
Hardness Resolution:0.5HR
Dimensions(mm):510*230*730
Weight:75kg
Power supply:AC 220V, 50Hz
