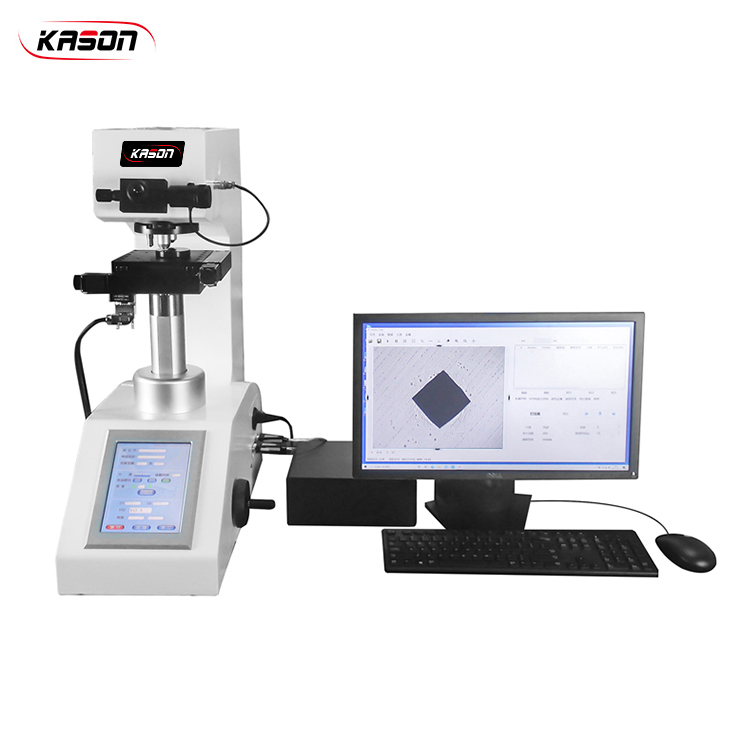

HTMV-1000M-AXY Automatic Micro Vickers Hardness Tester
1. Product introduction
HTMV-1000M-AXY digital micro-hardness tester is an ideal high-end micro hardness tester with lifting mechanism of optical cross guide rail, accurate force value and clear image.
2. Technical parameters
|
Model |
HTMV-1000M-AXY |
|
Test force |
10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N) |
|
Meet standard |
GB/T4340.2, ASTM E92 |
|
Measurement resolution |
0.01µm |
|
Data display output |
8 "touch screen display reading, can store 20 test results, USB drive, optional built-in printer and RS-232 interface |
|
Conversion scale |
Rockwell、Brinell |
|
Hardness test range |
8~2900HV |
|
Test force application method |
Automatic (loading, dwell time, unloading) |
|
Test microscope magnification |
400X(test), 100X (test, observation) |
|
Test force dwell time |
1-99s |
|
Maximum allowable specimen height |
160mm |
|
Distance from indenter to wall |
160mm |
|
Size |
540*260*650mm |
|
Weight |
About 50 kg |
|
Power supply |
AC220V ± 5%, 50 to 60 HZ |
