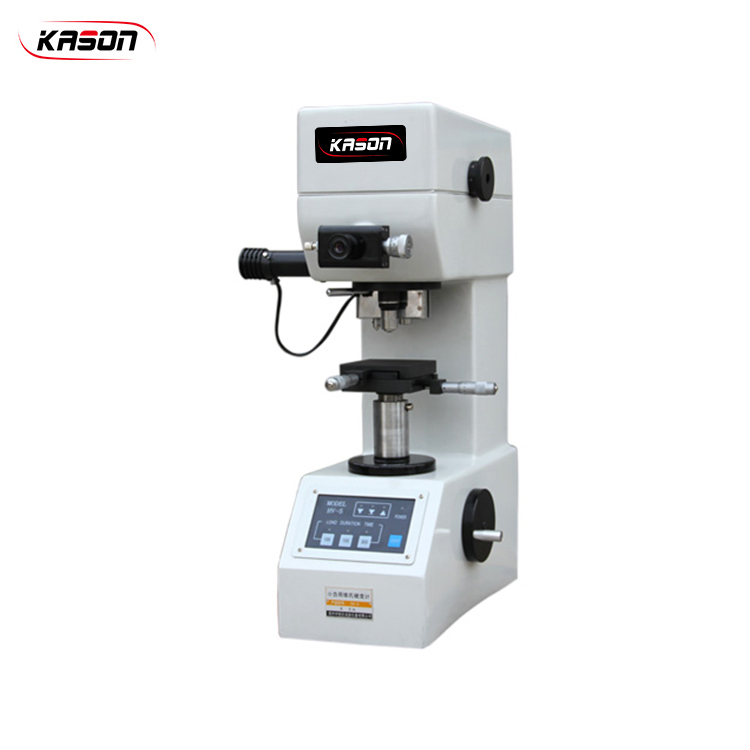

HTV-5/10/30/50 Digital Vickers Hardness Tester
Application fields:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Specification:
| Model | HTV-5/10/30/50 | HTVS-5/10/30/50 | HTVS-5/10/30/50T | 7HTV-5/10/30/50T |
| Display model | Small LCD digital display | Big LCD digital display | touch screen | Big touch screen |
| Turret Type | Manual | |||
| Direct display | ||||
| Test force | -5 | -10 | -30 | -50 |
| 0.3Kgf(2.91N), | 0.3Kgf(2.91N), 0.5Kgf(4.9N), 1Kgf(9.8N), | 1.0 Kgf(9.8N) | 1.0Kgf(9.8N) | |
| 0.5Kgf(4.9N), | 3Kgf(29.4N), 5Kgf(49.0N) | 2.0Kgf(19.6N) | 2.0Kgf(19.6N) | |
| 1Kgf(9.8N), | 10Kgf(98.0N) | 3.0Kgf(29.4N) | 2.5Kgf(24.5N) | |
| 2Kgf(19.6N), 3Kgf(29.4N), | 5.0Kgf(49.0N) | 5.0Kgf(49.0N) | ||
| 5Kgf(49.0N) | 10.0Kgf(98.0N) | 10Kgf(98.0N) | ||
| 20.0Kgf(196N) | 20Kgf(196N) | |||
| 30.0Kgf(294N) | 30Kgf(294N) | |||
| 50Kgf(490N) | ||||
| Loading and unloading mode | Automatic（loading,duration,unloading） | |||
| Conversion Scale | Rockwell, Superficial Rockwell, Brinell | |||
| Min Measuring Unit | 0. 5μm | 0.125μm | ||
| Total zoom multiple | Observe 100X | |||
| Magnification of Microscope | Measuring 200 x | |||
| Dwell Time | Adjustable 1 to 60 seconds | |||
| Max. Height of Specimen | 175mm | 175mm | 175mm | 175mm |
| Distance from indenter to wall | 135mm | 135mm | 135mm | 135mm |
| Depth at center line | 135mm | |||
| RS232,Built-in print, data statistics | NO | YES | YES | |
| Power Supply | AC220V±5%，50~60Hz | |||
