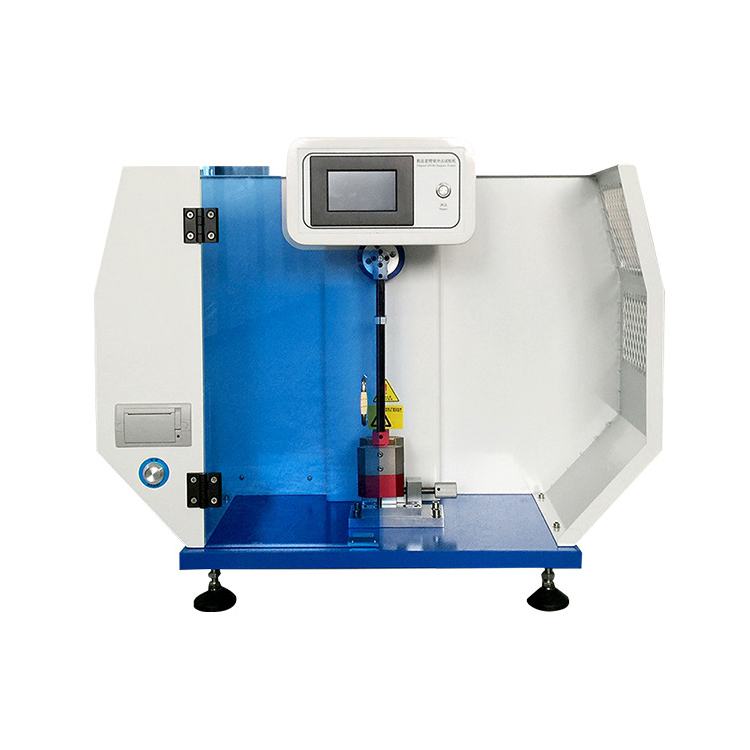

Plastics Izod Impact Test Plastic Touch Screen Izod Impact Tester
1.Applications:
This series Digital Display Impact Testing Machine is Single-chip microcomputer control, electric hammer block release, the impact energy display by the LCD.Each set of sample can do one to ten data, test data can be deleted arbitrarily. Automatically calculate the strength and average strength. Automatic print data report.2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Technical Parameter:
| Model | XJJD-50 |
| Impact Energy(J) | 7.5,15,25,50 |
| Impact Speed | 3.8m/s |
| Pendulum Angle | 160° |
|
Round Angle Of Impact Cutting Edge |
R=2±0.5mm |
|
The Distance Between Pendulum Center And Sample Center |
380mm |
| Accuracy Of Energy | 0.001 J |
| Energy Loss | 0.5% |
| Dimension | 550mm×350mm×850mm |
| Weight | 160 kg |
