1. Applications:

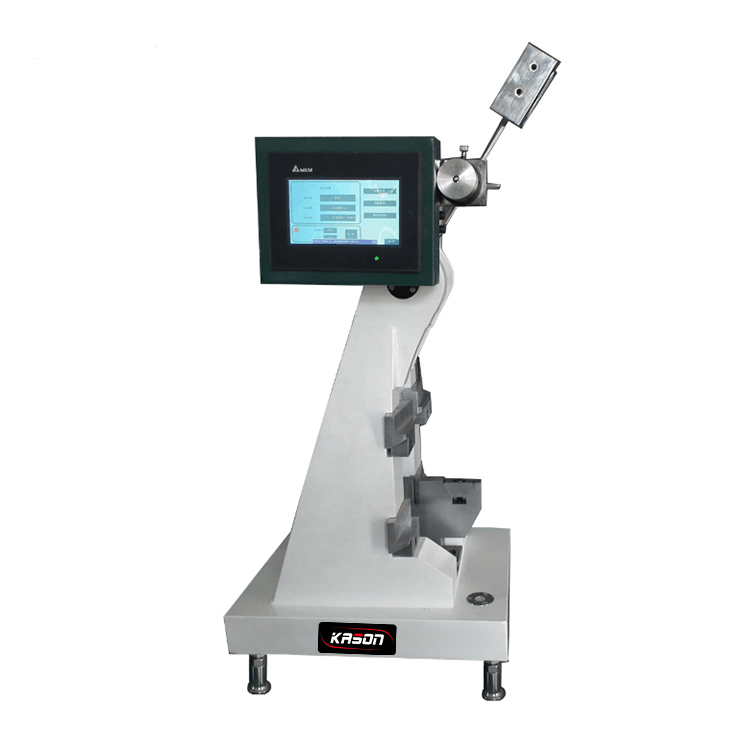

XJXD-5T series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.
2.Standard:
The main technical parameters of this series of impact testing machines fully meet the requirements of ASTMD256,IS0180, GB/T1043, JB/T 8762,GB/T 18743,GB/T 3808, JJG145,GB/T 1843,GB/T 2611 and JB/T 8761 standards.
3.Technical Parameter:
Charpy
Izod
Pendulum
Energy
2J、4J、5J
Pendulum Energy
2.75J、5.5J
Impact Speed
2.9m/s
Impact Speed
3.5m/s
Rising Angle
Of Pendulum
150°
Rising Angle
Of Pendulum
150°
Pendulum
Center To Sample Center Distance
230mm
Pendulum
Center To Sample Center Distance
335mm
Impact
Cutting Edge Radius
(2±0.5)mm
Impact
Cutting Edge Radius
R=0.8mm±0.2mm
Power supply
100VA 220VAC 50HZ
Dimensions
420mm*250mm*650mm
Required space
0.4m front and rear, 1.5m left and right, 1.5m
upper part
