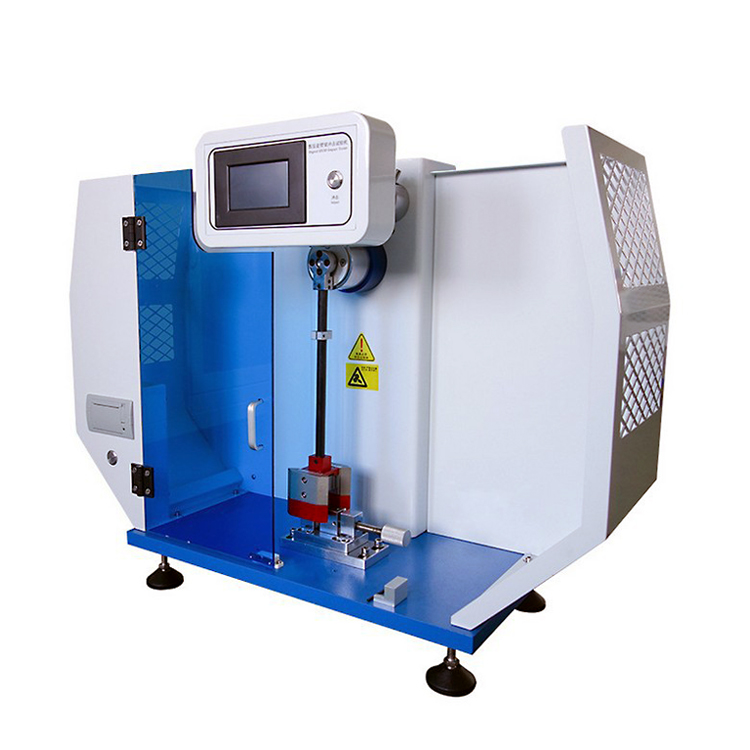

Plastic Charpy Izod Impact Testing Izod Impact Testing Equipment
1.Application:
It is mainly used to measure the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, and electrical insulating materials. Ideal testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, professional manufacturer laboratories and other units.
2.Features:It is a simple structure, convenient operation, accurate and reliable data.
Original Taiwan Delta touch screen display, PLC control,
With a micro printer
With USB connect to the computer directly.
measuring instrument, which accurately transmits the shape of the sample to the host through the notch depth measuring instrument, and saves the data to improve the accuracy of the experimental results.
3. Technical specifications:
|
Model |
HPIT-22XT |
HPIT-5.5XT |
|
Impact energy |
11J、22J |
2.75J、5.5J |
|
Impact velocity |
3.5m/s |
|
|
Pendulum advance angle |
1500 |
|
|
Distance from impact blade to above jaw |
22mm±0.2mm |
|
|
Strike center distance |
335mm |
|
|
Blade radius |
R=0.8mm±0.2mm |
|
|
Energy loss |
11J <0.05J；22J <0.10J； |
1.0J <0.02J；2.75J <0.03J；5.5J <0.03J |
|
Minimum resolution |
0.001J |
|
|
Instrument size |
L*W*H: 700mm×350mm×850mm |
|
|
Required space |
Fore and aft distance：0.4m, Left and right distance：1.5m,Upper distance：1.5m |
|
|
power supply |
100VA 220VAC 50HZ |
|
