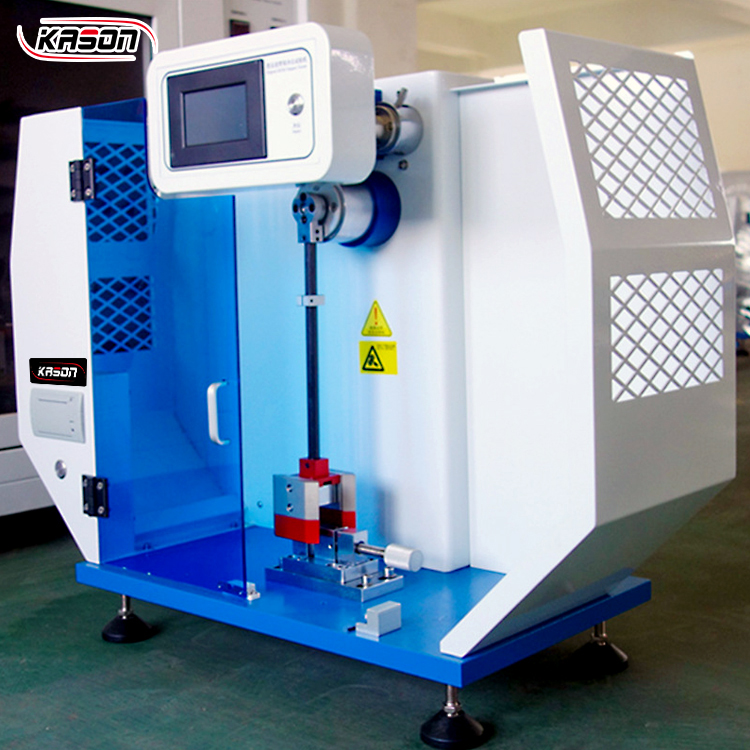

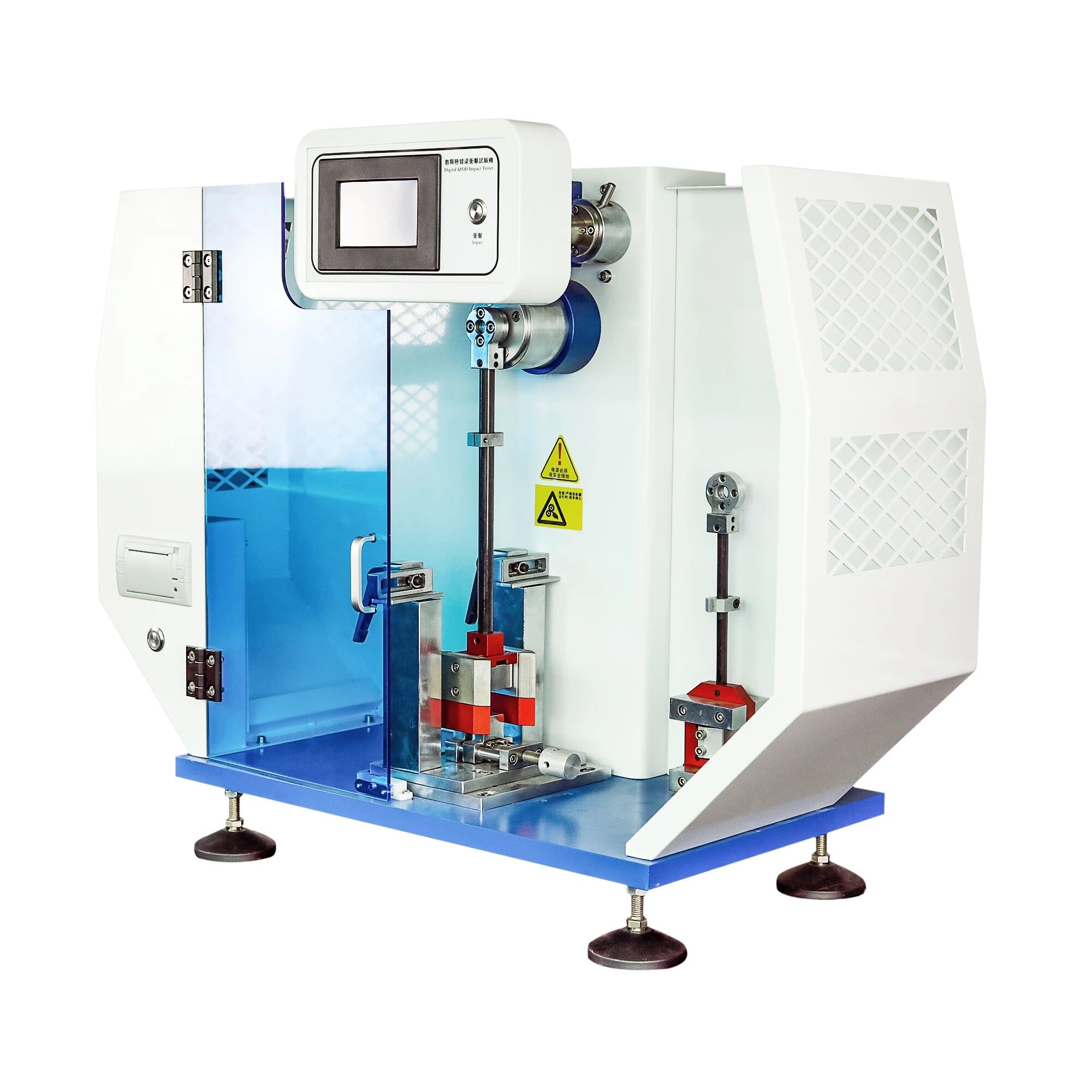

Plastic Digital Izod Impact Testing Machinery For Plastic Falling Dart Impact Tester
Application
HPIT series impact testing machine is mainly used for the determination of the impact toughness of non-metallic
materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber
reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal
testing equipment for the chemical industry, scientific research institutions, quality inspection departments of
colleges and universities, etc.
Standard& features
The main technical parameters of this series of impact testing machines fully meet the requirements of
ISO179—2000，GB/T1043—2008, JB/T8762—1998，GB/T 18743-2002，ISO180—2000，GB/T1843—2008，
JB/T8761—1998，ASTM D256-2010，GB-T13525-1992 standards.
Technical parameter:
|
Touch Screen Plastic Charpy & Izod Impact Testing Machine |
|||
|
Item |
Model |
Charpy Impact |
Izod Impact |
|
Pendulum energy |
HPIT-5XJT |
1,2,4,5J |
2.75J, 5.5J |
|
|
HPIT-50XJT |
7.5, 15,25,50J |
2.75,5.5, 1 1,22J |
|
Pendulum angle |
150° |
||
|
Blade angle |
30° |
||
|
Blade front angle |
5° |
||
|
Blade back angle |
10° |
||
|
Impact speed |
2.9m/s |
3.5m/s |
|
|
Impact center distance |
221mm |
335mm |
|
|
Blade filleted radius |
R=2mm±0.5mm |
R=0.8mm±0.2mm |
|
|
Energy loss |
0.5J ≤4.0J 1.0J ≤2.0J 2.0J ≤ 1.0J ≥4.0J≤0.5J |
2.75J ≤0.06J 5.5J ≤0. 12J |
|
|
Pendulum torque |
Pd 1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2. 14359Nm Pd5J=2.67949Nm |
Pd2.75J=1.47372Nm Pd5.5J=2.94744Nm |
|
|
Print out |
Capacity. Angle, energy, etc. |
||
|
|
with the printer |
||
|
Power supply |
AC220V± 10% 50HZ |
||
