Plastic Izod Pendulum Impact Tester Plastic Film Chip Fall Darts Impact Tester
1.Applications:

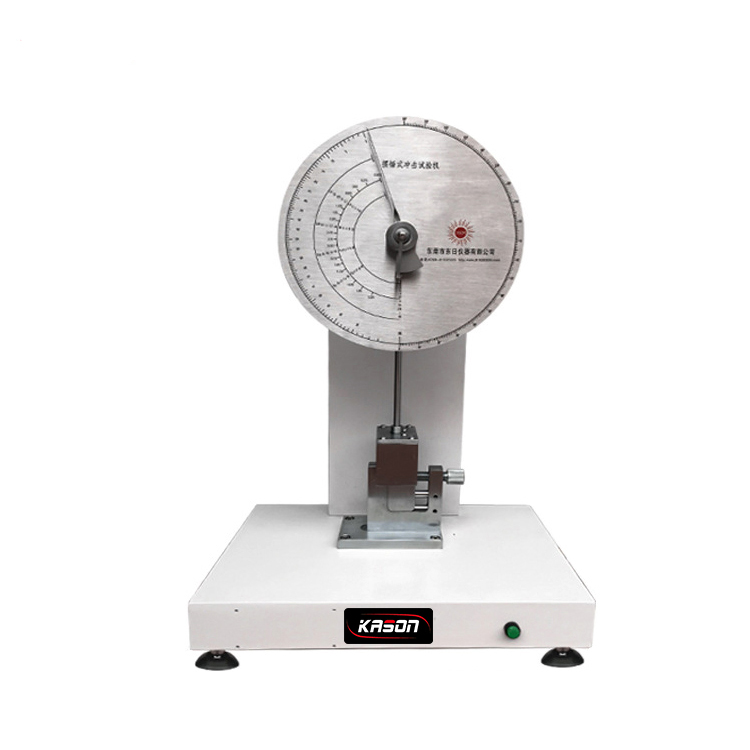

Dial DisplayPlasticCharpy Impact Testing Machineis pointer dial, electric hammer block release.
Application:hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Standard:
JB/T8761、GB/T1043、ISO179 and so on.
3. Main Specifications:
|
Model |
HPIT-5J |
HPIT-50J |
|
Impact Energy |
5 J |
50 J |
|
Impact Speed |
2.9 m/s |
3.8m/s |
|
Pendulum Angle |
160° |
160° |
|
Round Angle Of The Jaw |
R=1±0.1 mm |
|
|
Round Angle Of Impact Cutting Edge |
R=2±0.5 mm |
|
|
Impact Blade Angle |
30±l° |
|
|
The Distance Between Pendulum |
221 mm |
380mm |
