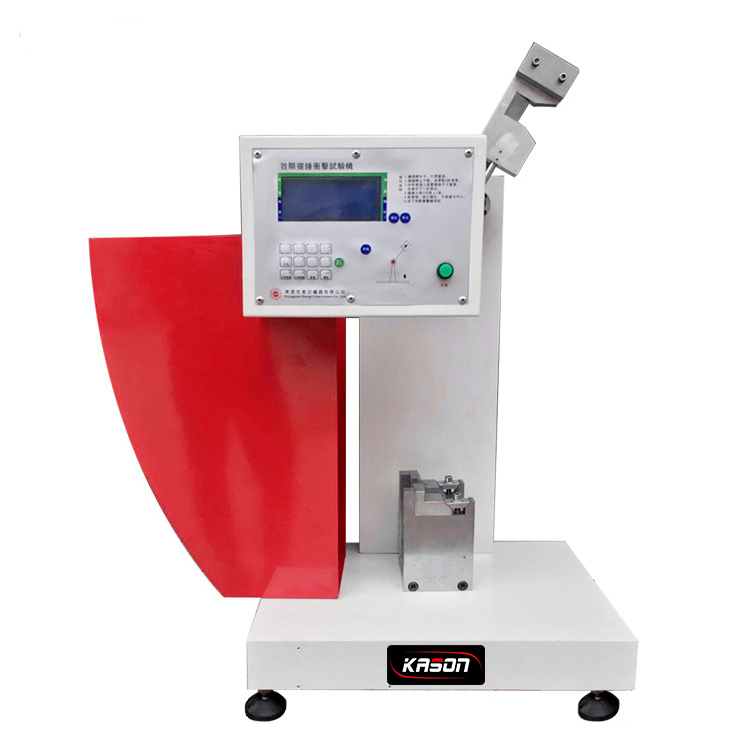

XJXD-5 Touch Screen Digital Plastic Charpy Izod Impact Testing Machine with USB
Product Application
XJXD-5 series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.
Specification Data
|
act TestiTouch Screen Plastic Charpy & Izod Impact Testing Machine
|
|||
|
Charpy |
Izod |
||
|
Pendulum Energy |
2J,4J,5J |
Pendulum Energy |
2.75J,5.5J |
|
Impact Speed |
2.9m/s |
Impact Speed |
3.5m/s |
|
Rising Angle Of Pendulum |
150° |
Rising Angle Of Pendulum |
150° |
|
Pendulum Center To Sample Center Distance |
230mm |
Pendulum Center To Sample Center Distance |
335mm |
|
Impact Cutting Edge Radius |
(2±0.5)mm |
Impact Cutting Edge Radius |
R=0.8mm±0.2mm |
|
Power supply |
100VA 220VAC 50HZ |
||
|
Dimensions |
420mm*250mm*650mm |
||
|
Required space |
0.4m front and rear, 1.5m left and right, 1.5m upper part |
||
