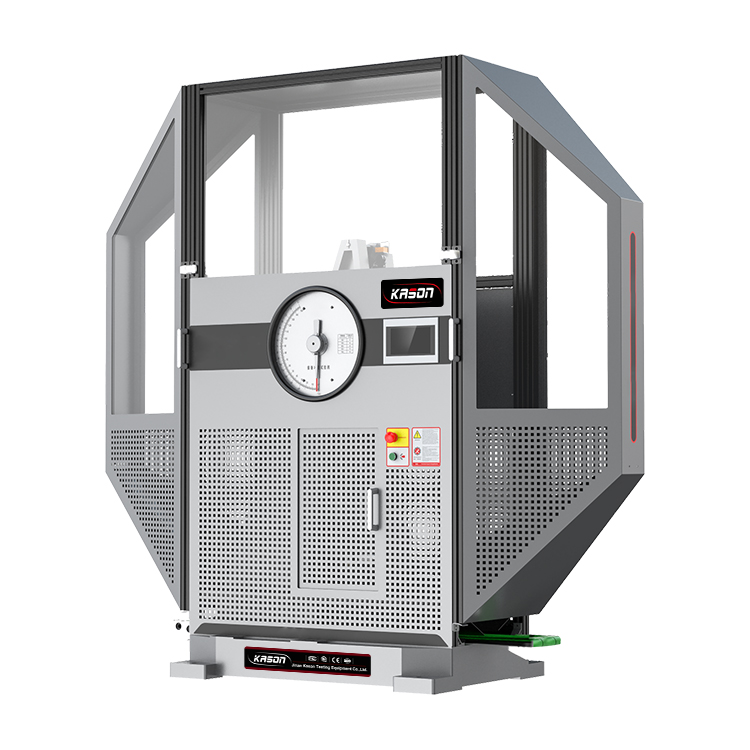

KASON PIT452D1-3 /KASON PIT752D1-3 Computer Control Fully Automatic High Temperature Impact Testing Machine
Function Overview:
PIT452D1-3 metal pendulum impact tester is an instrument for testing the impact resistance of metal materials under dynamic load. This model can be equipped with a fully automatic sample delivery system to improve test efficiency and reduce the labor intensity of test personnel.
Related standards:
l GB/T 229 "Metallic materials - Charpy pendulum impact test method"
l GB/T 3808 "Inspection of pendulum impact test machine"
l JJG 145 "Pendulum impact test machine"
l ASTM E23 "Standard Test Methods for Notched Bar Impact Testing of Metallic Materials"
l ISO 148 "Metallic materials - Charpy pendulum impact test"
Note: The referenced standards are the latest standards in effect at the date of publication.
Technology parameter:
|
Main model |
PIT452D1-3 |
PIT752D1-3 |
|
|
Maximum impact energy (J) |
450 |
750 |
|
|
Optional simply supported beam pendulum (J) |
150, 300 |
150, 300,450 |
|
|
Impact velocity (m/s) |
5.24 |
||
|
Pendulum pre-elevation angle (°) |
150 |
||
|
Angular resolution (°) |
0.025 |
||
|
Distance from pendulum axis center to sample (mm) |
750 |
||
|
Air impact absorption |
≤0.4% |
||
|
Sample support |
Span (mm) |
40 |
|
|
End arc radius (mm) |
1 |
||
|
Support surface inclination (°) |
11±1 |
||
|
Impact blade |
Arc radius (mm) |
2 |
|
|
Included angle (°) |
30 |
||
|
Thickness (mm) |
16 |
||
|
Sample size (mm) |
55×10×10 |
||
|
Dimensions (mm) |
2150x2150x860 |
||
|
Power supply of the host |
Three-phase five-wire AC380V±10% 50Hz 1kW |
||
|
Weight of the host (kg) |
1400 |
||
