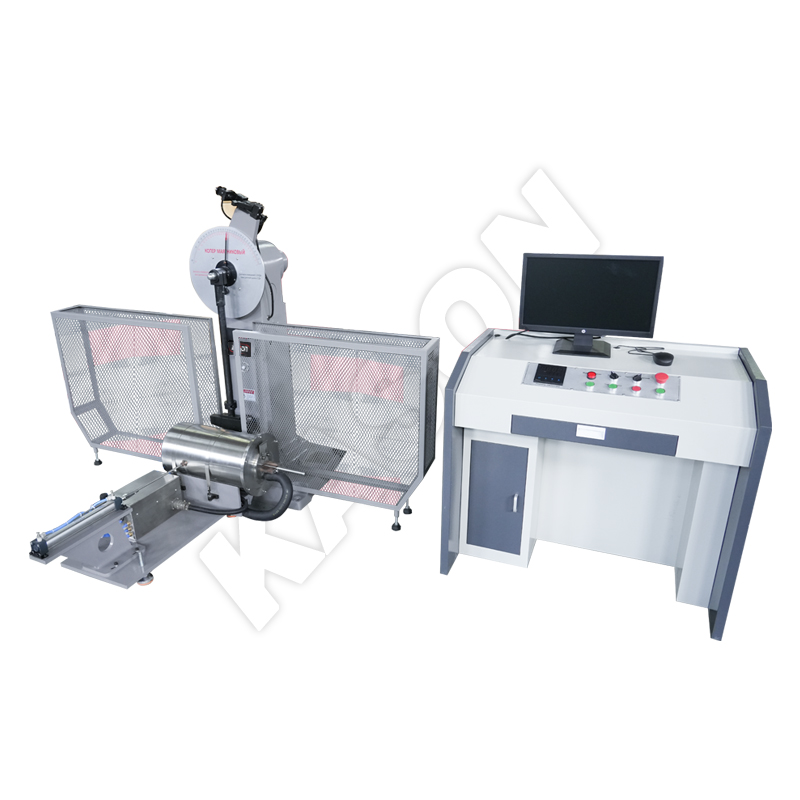

KASON PIT302WZ /KASON PIT502WZ Computer Control Pendulum Impact Testing Machine With Automatic sample delivery(300J/500J)
Application:
PIT-WZ Computer Control automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out.
Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specifications
|
MODEL |
KASON PIT302WZ |
KASON PIT502WZ |
|
Impact energy (J) |
150,300 |
250,500 |
|
Value of every grid (J) |
0~300(2J), 0~150(1J) |
0~500(5J), 0~250(2.5J) |
|
Moment of pendulum(N·m) |
0~300J(160.7695N·m), 0~150J(80.3848N·m) |
0~500J(267.9492N.m), 0~250J(133.9746) |
|
Impact velocity (m/s) |
5.2 5.24 |
5.4 |
|
Distance between pendulum center and sample center (mm) |
750 |
800 |
|
Raised angle |
150º |
|
|
Standard span (mm) |
40+0.2 |
|
|
Round angle of jaws (mm) |
R1-1.5((1mm is special order) ) |
|
|
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05(8mm is special order)
|
|
|
Specimen holder support surface angle
|
11°
|
|
|
The impact of the blade angle
|
30°
|
|
|
The impact blade thickness (mm)
|
16
|
|
|
Size of specimen (mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|
|
Power supply |
3phs, 380V/220V±10%, 50Hz or specified |
|
|
Dimensions (mm) |
2124 x 600 x 1340
|
2144 x 736 x 1390 |
|
Gross weight(KG) |
550 |
750 |
