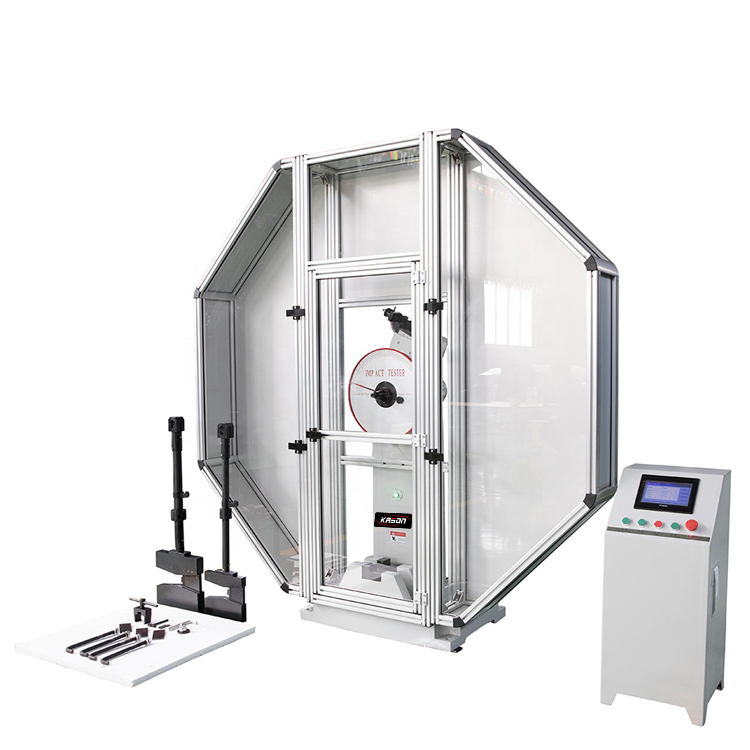

KASON PIT302TP /KASON PIT502TP Digital display Pendulum Impact Testing With fully enclosed protective cover Machine(300J/500J)
Application:
PIT-TP Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specifications
|
MODEL |
KASON PIT302TP |
KASON PIT502TP |
|
Impact energy (J) |
150,300 |
250,500 |
|
Value of every grid (J) |
0~300(2J), 0~150(1J) |
0~500(5J), 0~250(2.5J) |
|
Moment of pendulum(N·m) |
0~300J(160.7695N·m), 0~150J(80.3848N·m) |
0~500J(267.9492N.m), 0~250J(133.9746) |
|
Impact velocity (m/s) |
5.2 5.24 |
5.4 |
|
Distance between pendulum center and sample center (mm) |
750 |
800 |
|
Raised angle |
150º |
|
|
Standard span (mm) |
40+0.2 |
|
|
Round angle of jaws (mm) |
R1-1.5((1mm is special order) ) |
|
|
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05(8mm is special order)
|
|
|
Specimen holder support surface angle
|
11°
|
|
|
The impact of the blade angle
|
30°
|
|
|
The impact blade thickness (mm)
|
16
|
|
|
Size of specimen (mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|
|
Power supply |
3phs, 380V/220V±10%, 50Hz or specified |
|
|
Dimensions (mm) |
2124 x 600 x 1340
|
2144 x 736 x 1390 |
|
Gross weight(KG) |
550 |
750 |
